Product Description:
Upgrade your lighting with our premium LED Flat Panel Light 4-Pack, engineered for maximum efficiency, versatility, and durability. Each panel features Wattage & Color Temperature Tunability for fully customizable lighting—from offices to retail and commercial spaces.
The slim-profile design with built-in T-Bar clips makes for effortless installation into standard ceiling grids. With 0–10V continuous dimming, IP44 protection, and ETL, FCC, DLC, RoHS listings, these back-lit panels are ideal for retrofits or new installations.
Key Features:
-

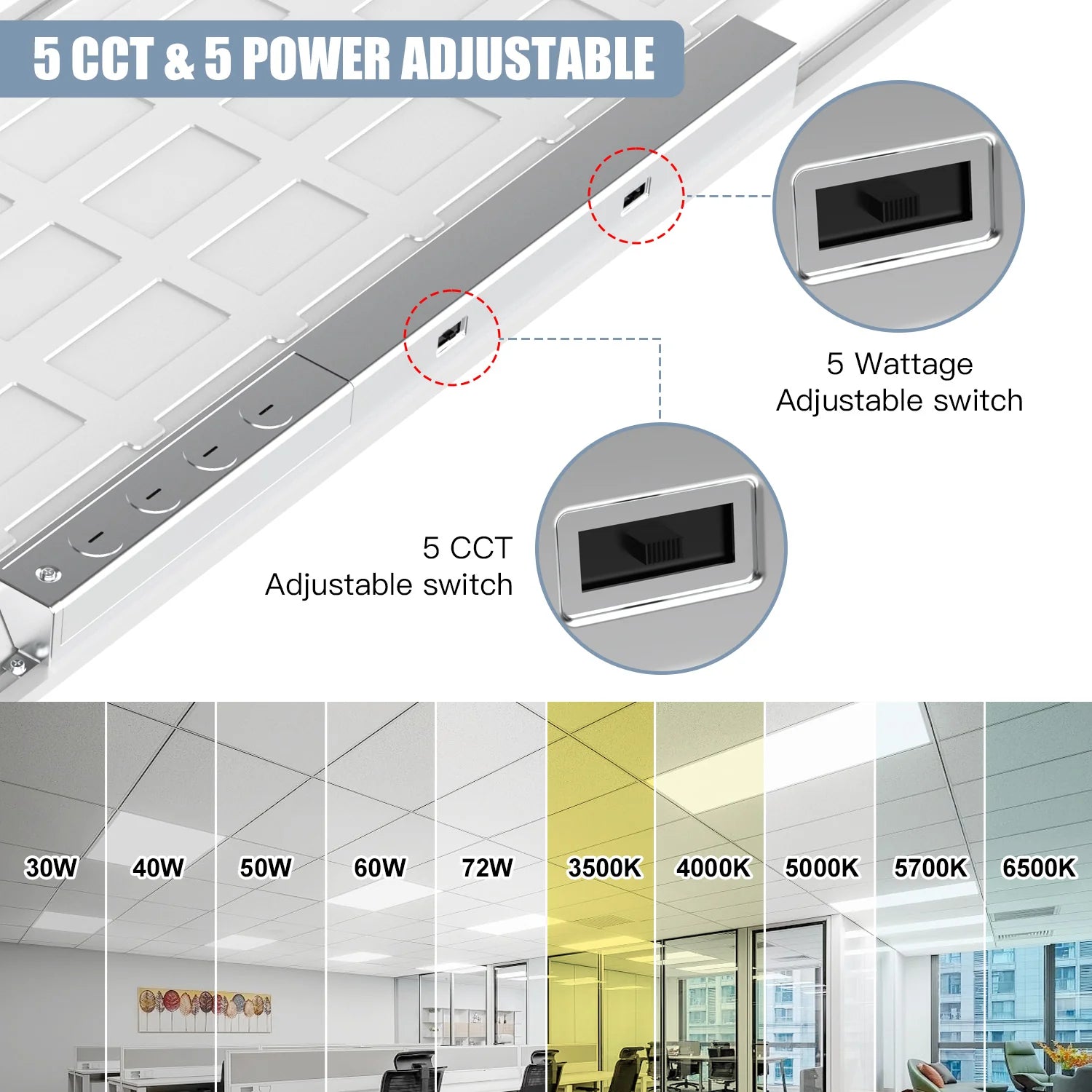

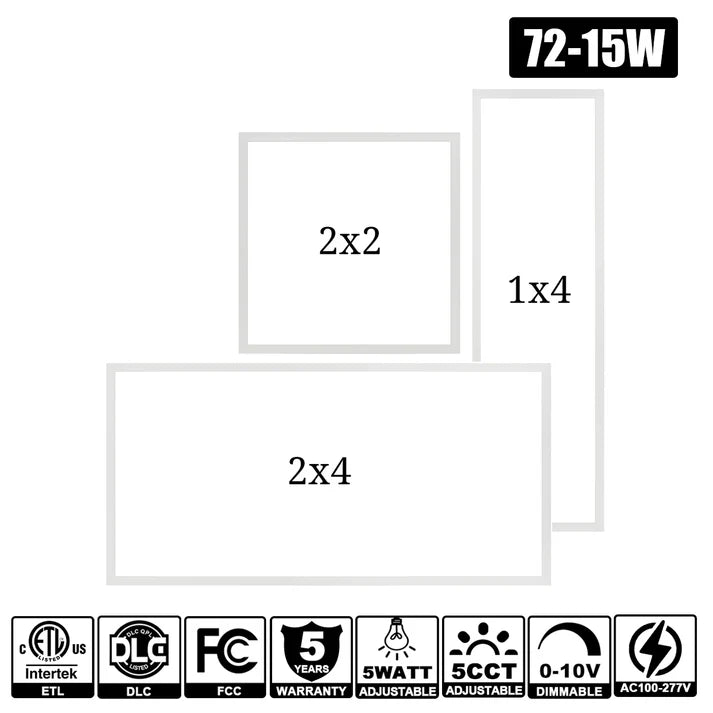

Wattage Tunable (per model):
-
1×4 Panel (4-Pack): 15W / 20W / 25W / 30W / 40W
-
2×2 Panel (4-Pack): 15W / 20W / 25W / 30W / 40W
-

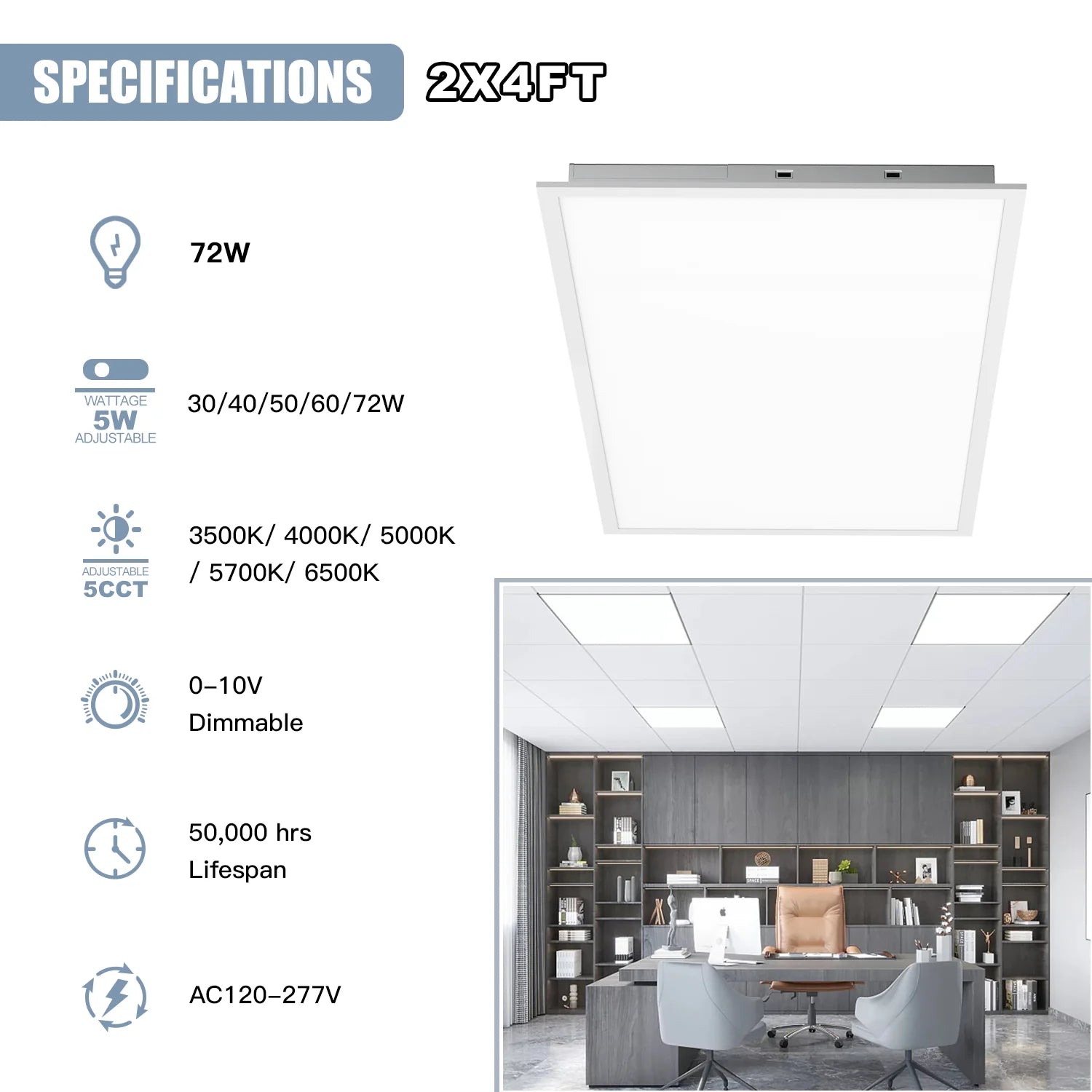

2×4 Panel (4-Pack): 30W / 40W / 50W / 60W / 72W
-
-
Color Temperature Tunable (CCT):
-
3500K / 4000K / 5000K / 5700K / 6500K
-
-
Input Voltage: 120–277VAC (Also compatible with 120–347VAC)
-

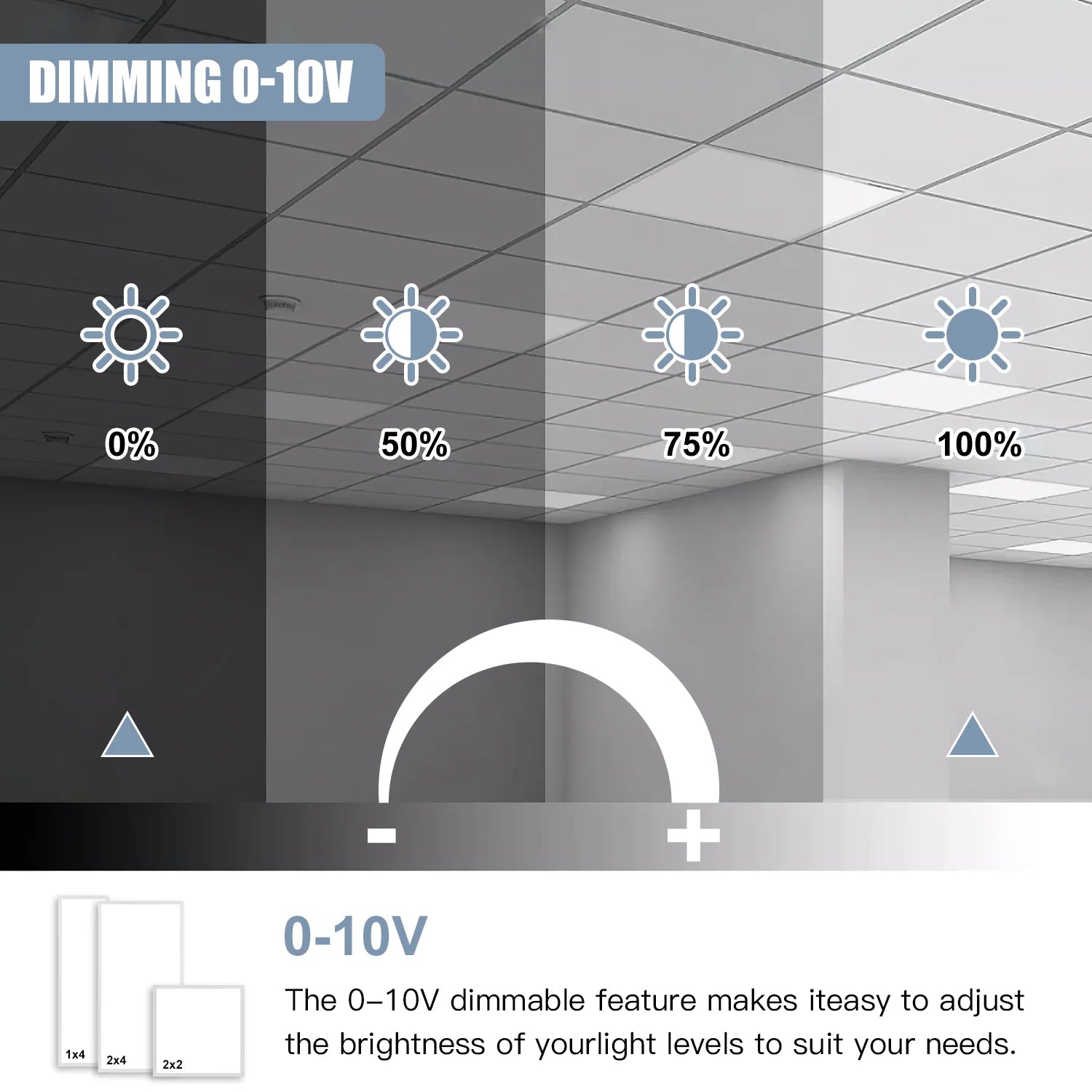

Dimming: 0–10V Continuous
-

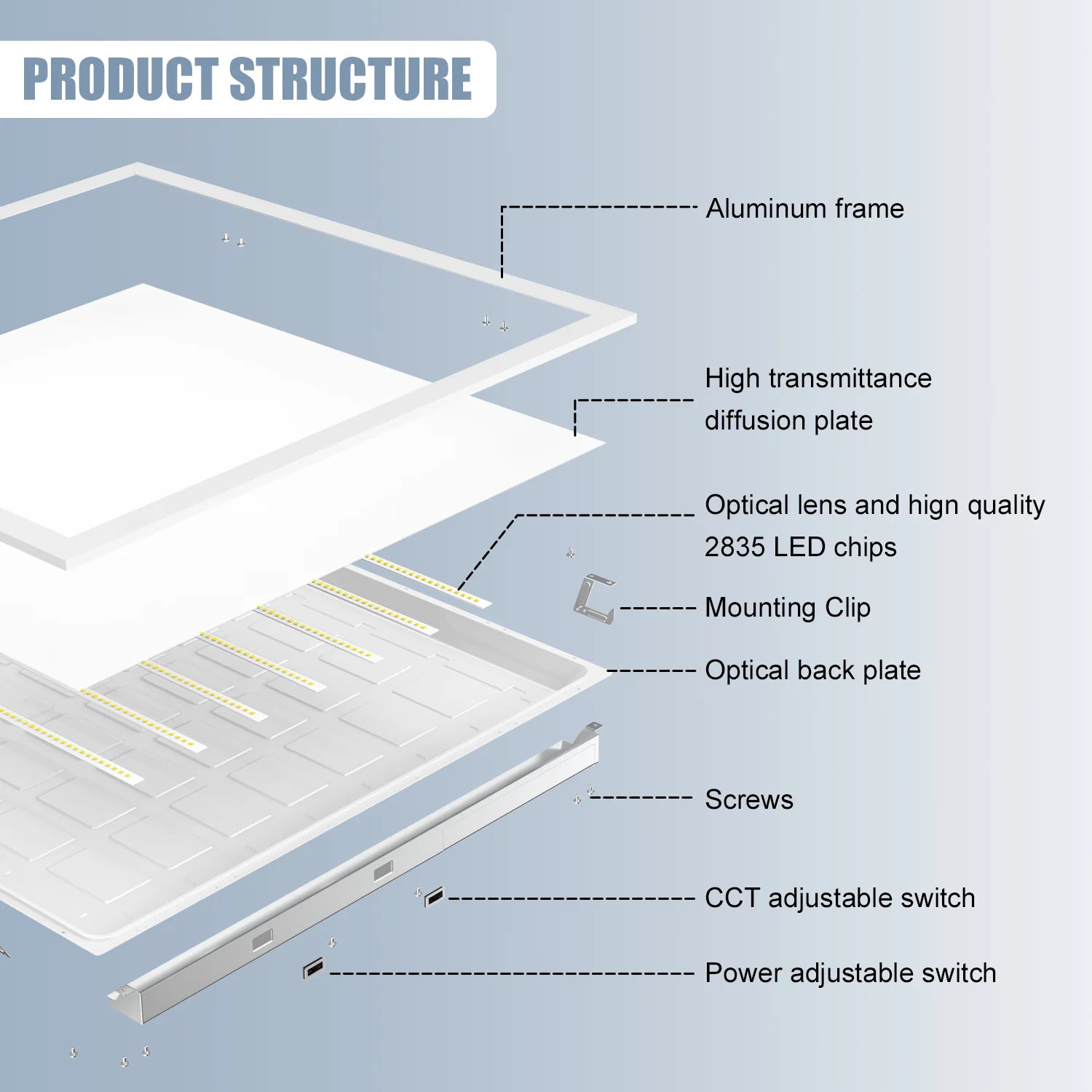

Back-lit Design: Uniform distribution with reduced glare
-
Frame: Matte white finish with integrated mounting clips
-
Optics: High-efficiency diffuser lens
-
Energy Savings: 50%+ compared to traditional fluorescents
-
Outdoor Rating: IP44
-

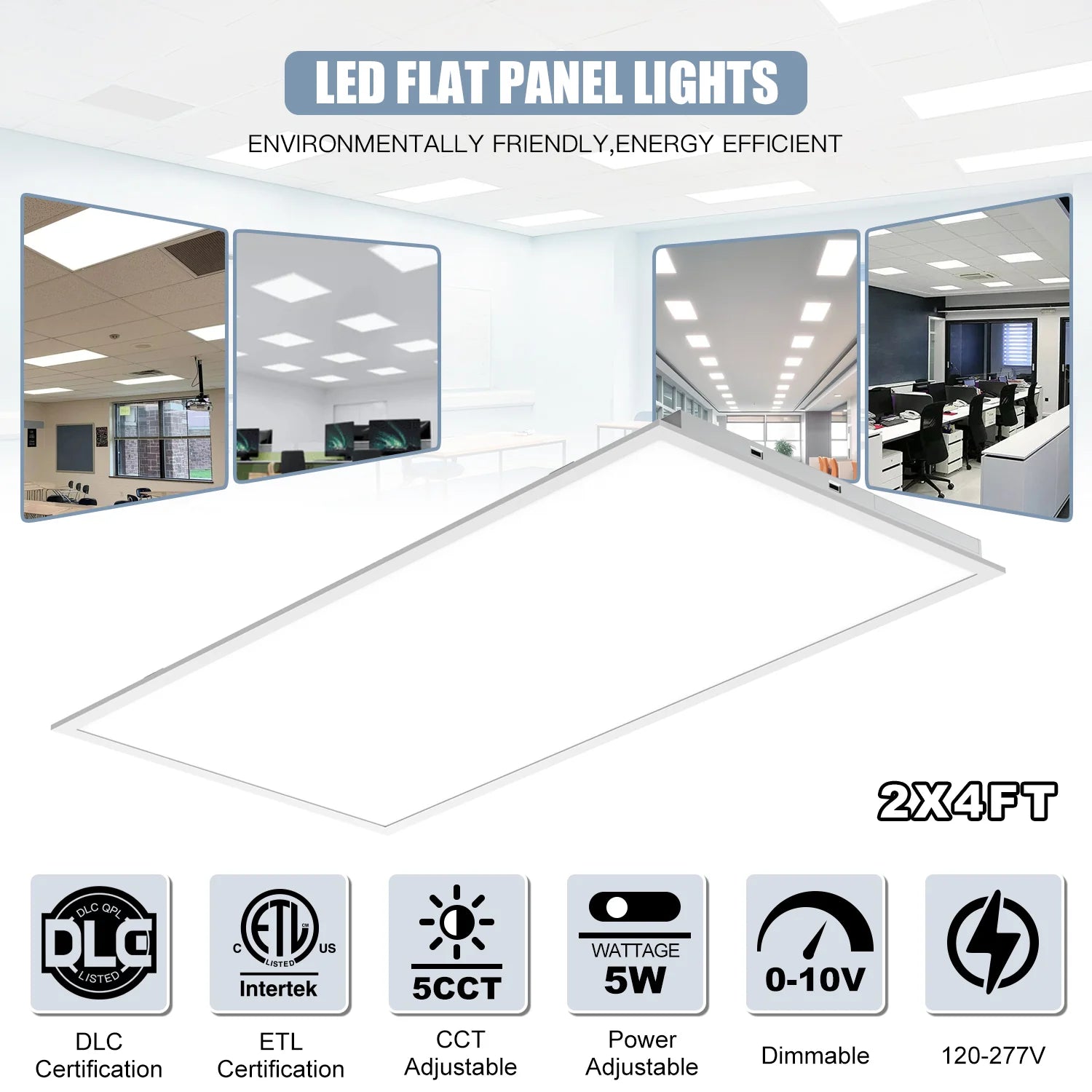

Certifications: ETL, FCC, DLC, RoHS
-
Warranty: 5-Year Limited
-
Lifespan: Rated for 50,000 hours
Specification Table:

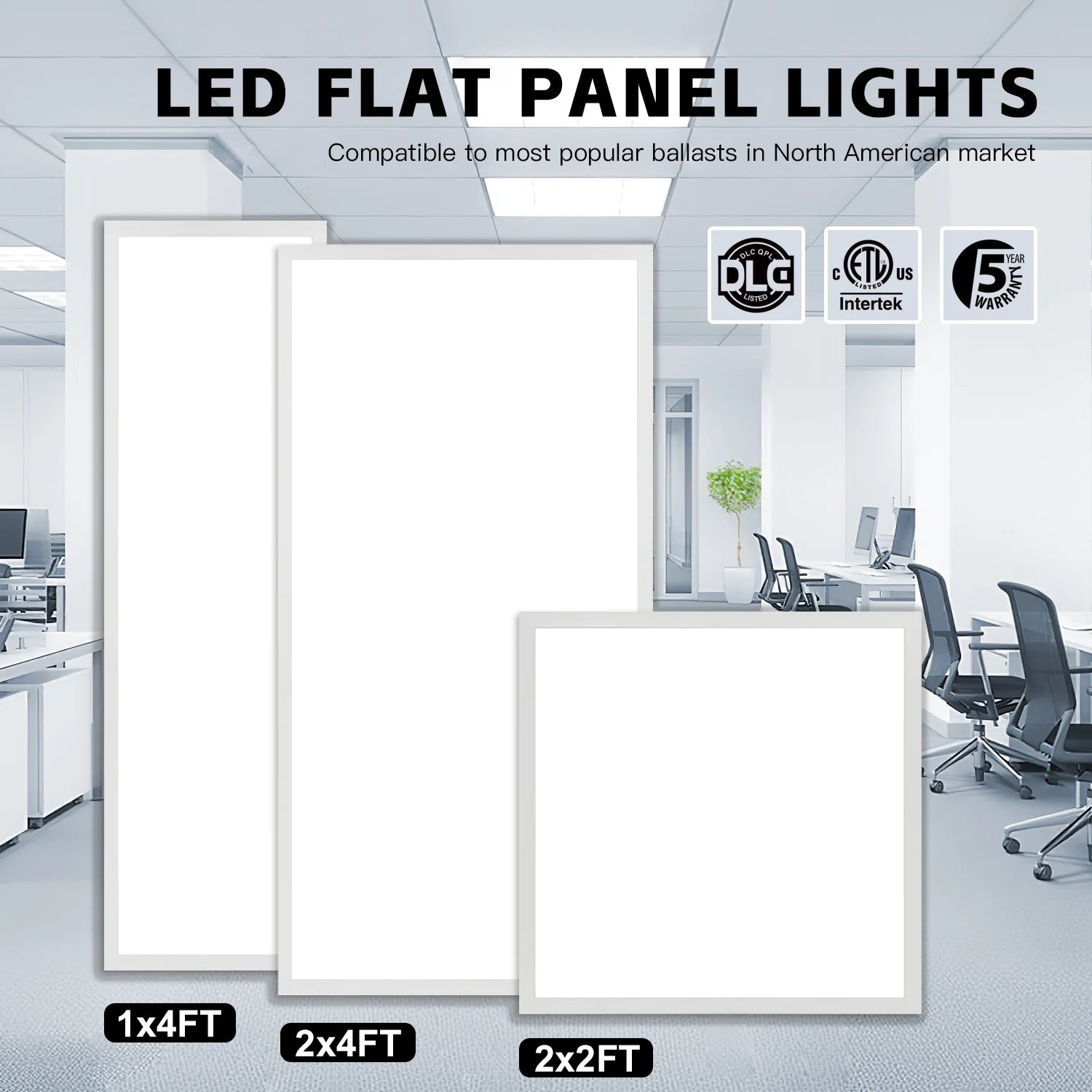

Model | Wattage Range | Size | Efficacy | Voltage | CRI | Beam Type |
---|---|---|---|---|---|---|
1×4 Panel | 15W–40W (Tunable) | 1x4 ft | Up to 125 LPW | 120–277VAC | 80+ | Type II–V |
2×2 Panel | 15W–40W (Tunable) | 2x2 ft | Up to 125 LPW | 120–277VAC | 80+ | Type II–V |
2×4 Panel | 30W–72W (Tunable) | 2x4 ft | Up to 125 LPW | 120–277VAC | 80+ | Type II–V |
Performance:
-
Power Factor: ≥ 0.95
-
Driver Efficiency: ≥ 90%
-
Working Temp: -40°F to 113°F
-
Storage Temp: -40°F to 176°F

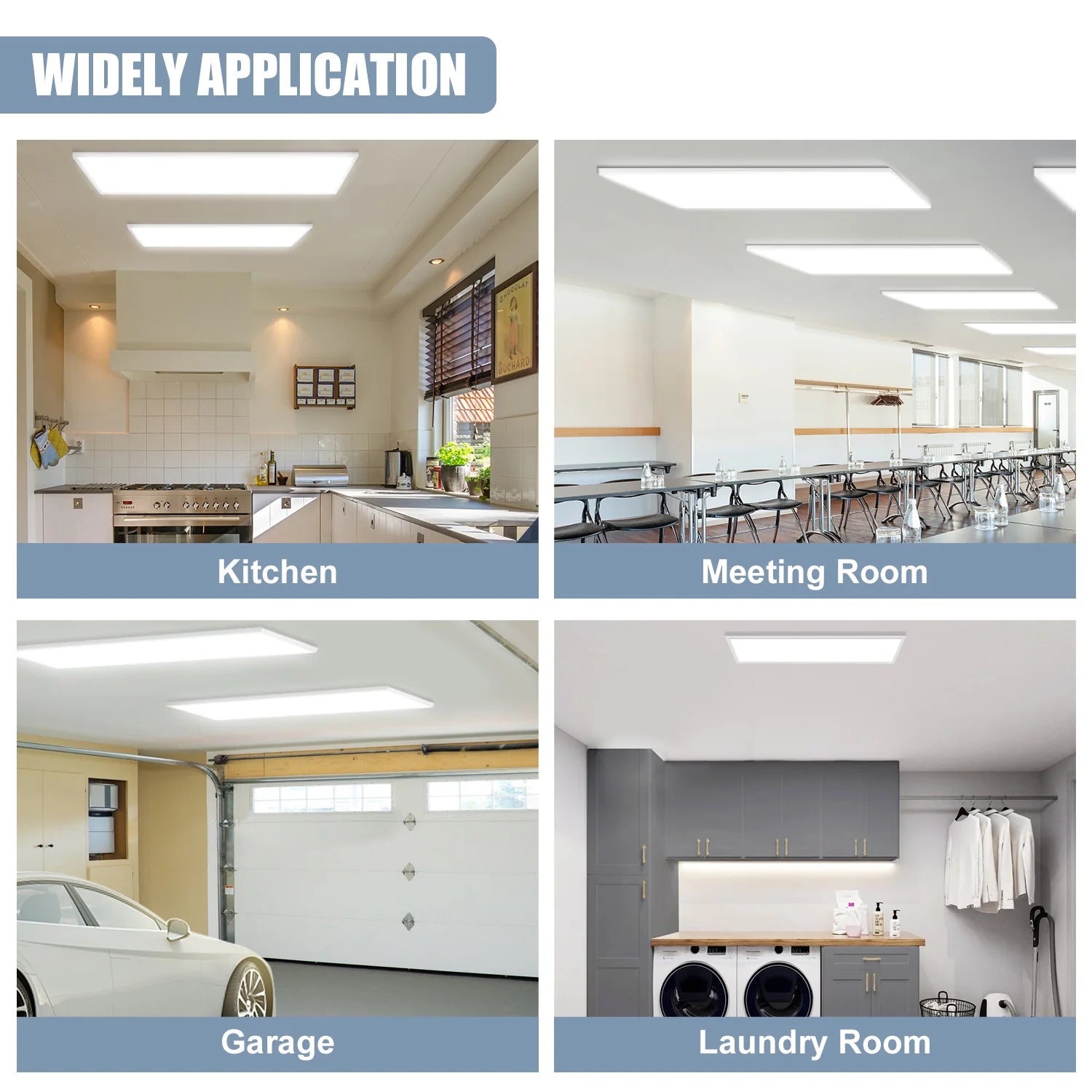

Applications:
-
Offices
-
Schools
-
Retail Stores
-
Hospitals
-
Conference Rooms
-
Corridors & Commercial Buildings
What’s in the Box (Per Order):
-
4× LED Flat Panel Lights (Model selected)
-
Integrated Driver (Pre-mounted)
-
Mounting Clips
-
Installation Manual
-
5-Year Warranty Card
