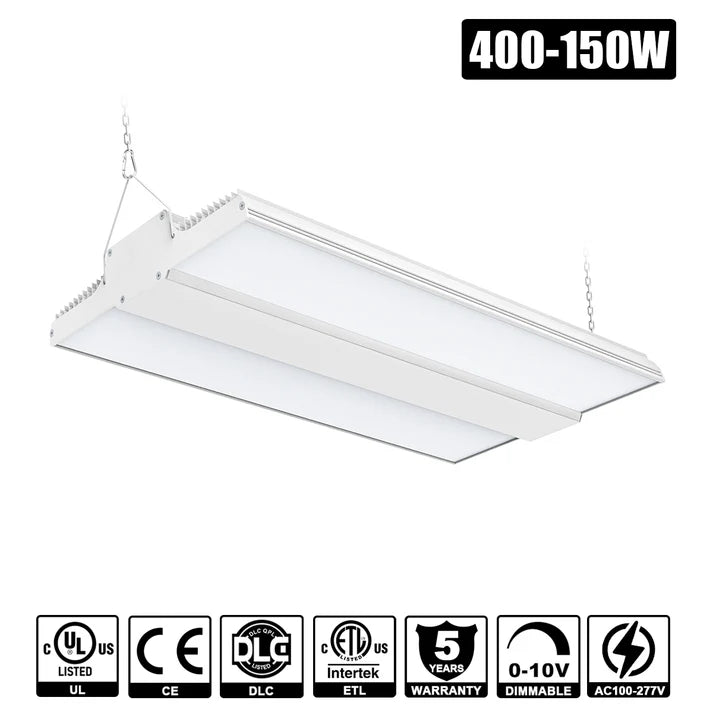

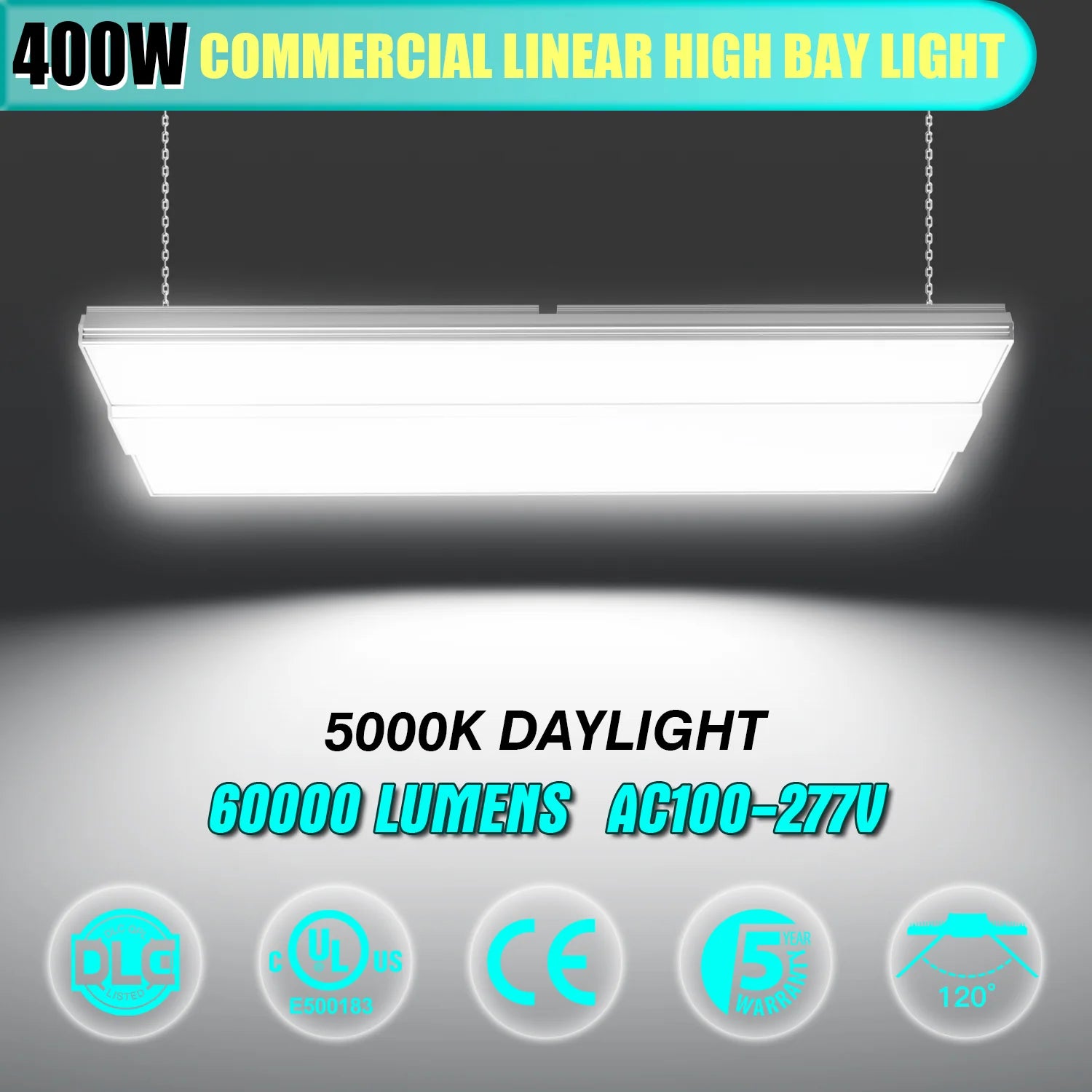

400W – 150W LED Linear High Bay Light | 5000K | 100-480VAC | 0-10V Dimmable | DLC/UL Certified
$92.00
Shipping calculated at checkout.
Experience a harmonious blend of premium sound quality and ergonomic design that allows.
Quantity
Description
Product Description:
The NG-LHB Series LED Linear High Bay Lights are the perfect lighting solution for industrial and commercial facilities. With wattage options from 150W to 400W and compatibility with a wide voltage range (100–480VAC), this light is engineered to deliver high performance, durability, and energy efficiency.
Featuring 0-10V dimming, a front light-emitting design, and a stretched aluminum shell, this light ensures optimal cooling and maximum illumination with uniform distribution.

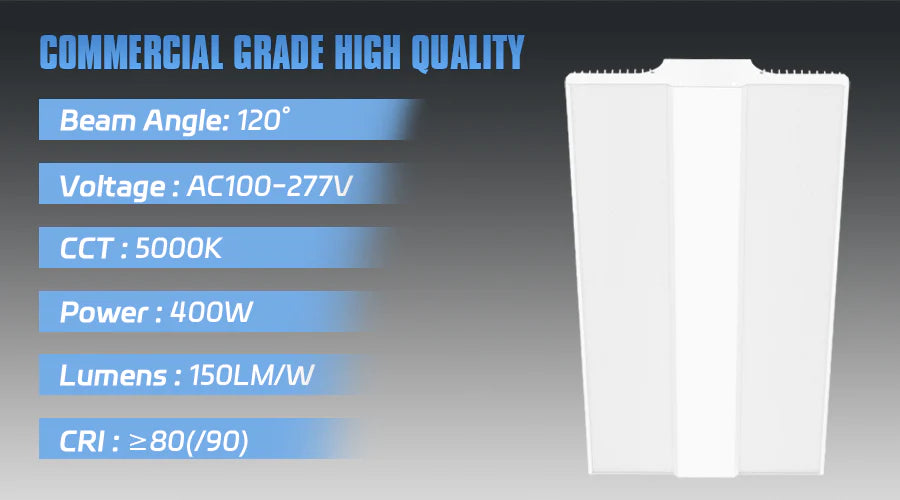

Key Features:
-
Wattage Options:
-
150W – 22,500 Lumens
-
240W – 36,000 Lumens
-
300W – 45,000 Lumens
-
400W – 60,000 Lumens
-
-
CCT: 5000K (Daylight White)
-
Input Voltage: 100–277VAC / 277–480VAC (for selected variants)
-

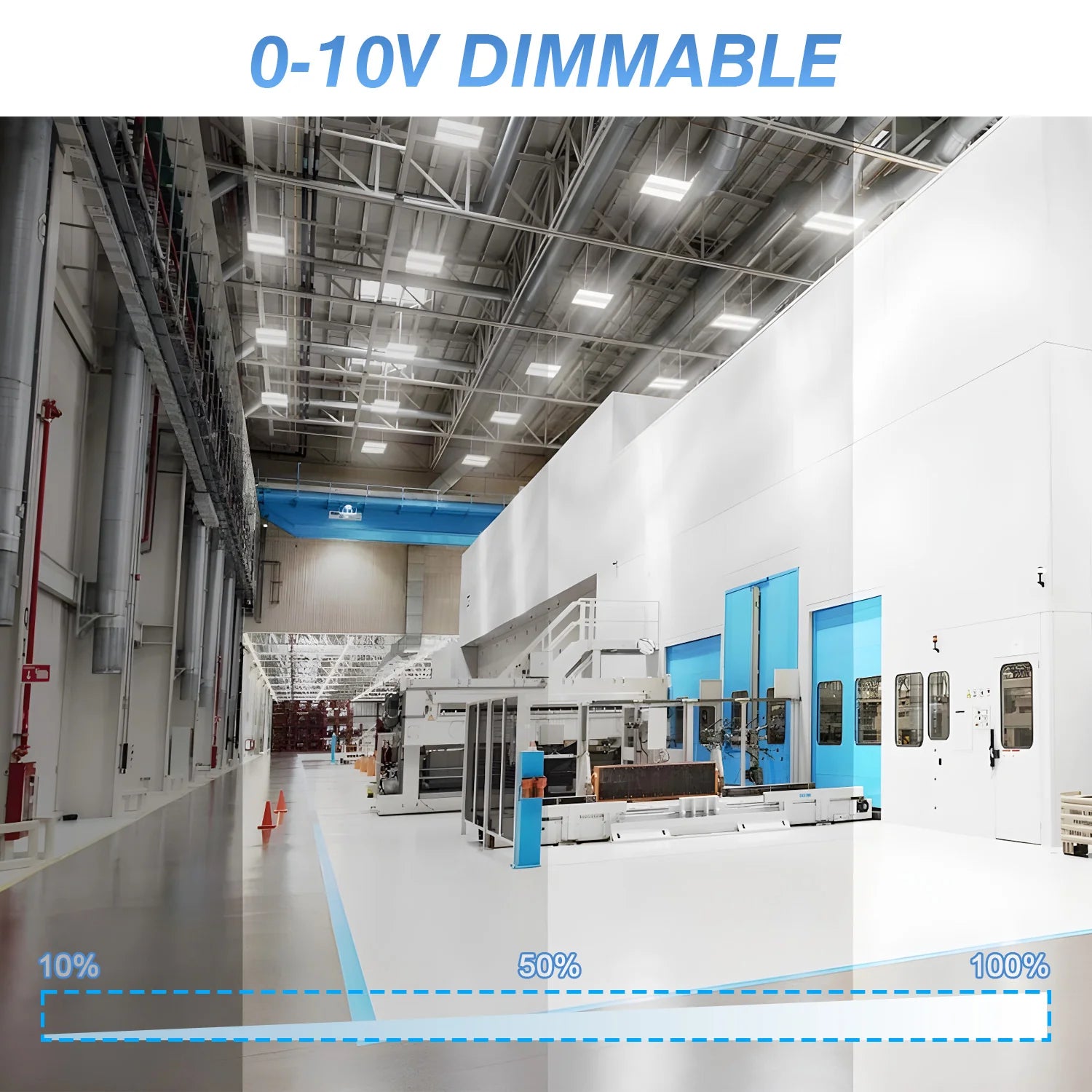

Dimming: 0-10V Dimmable
-

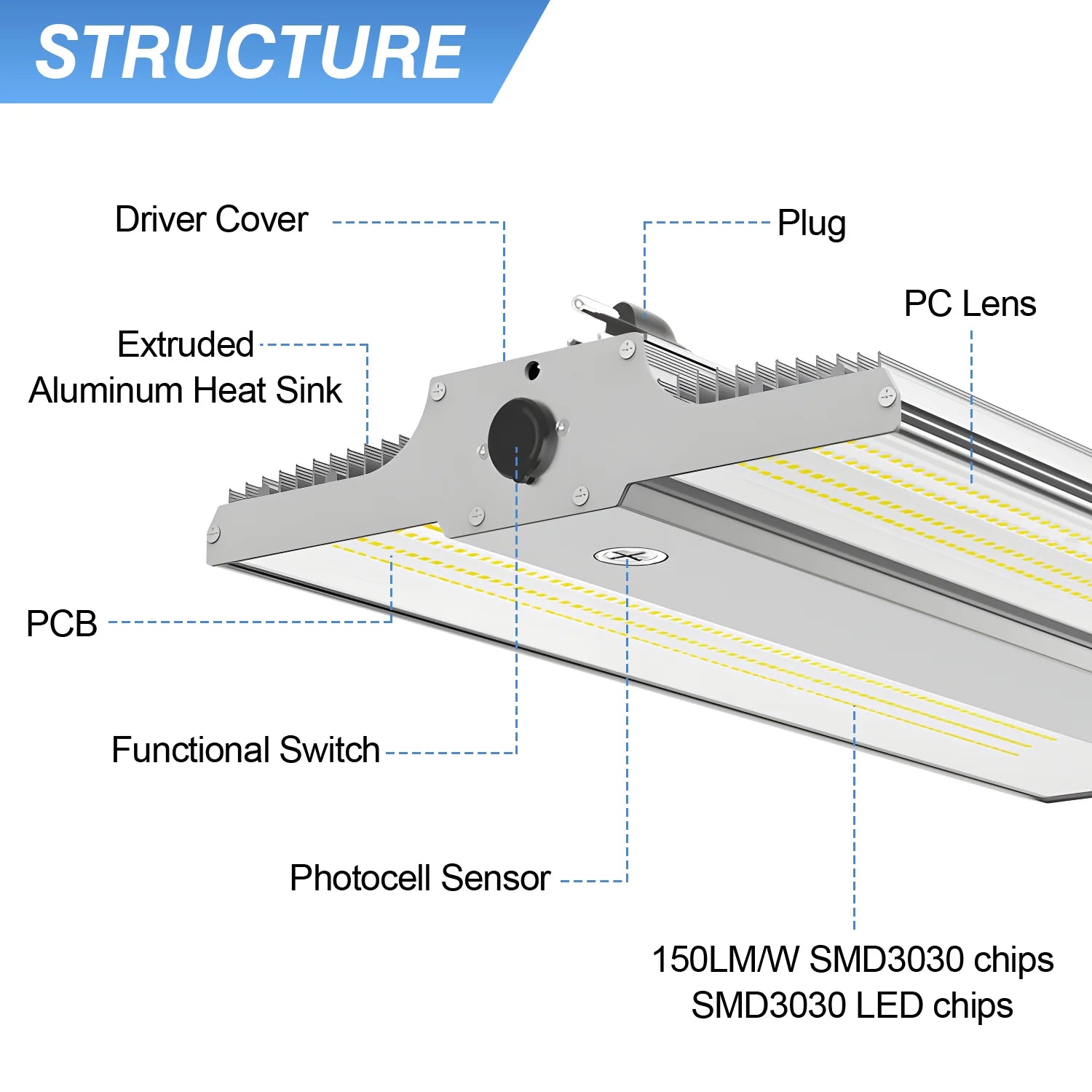

Light Source: SMD3030 & SMD2835 LEDs
-
Luminous Efficacy: Up to 150 lm/W
-
PC Diffusion Cover: High-transmittance for uniform light distribution
-

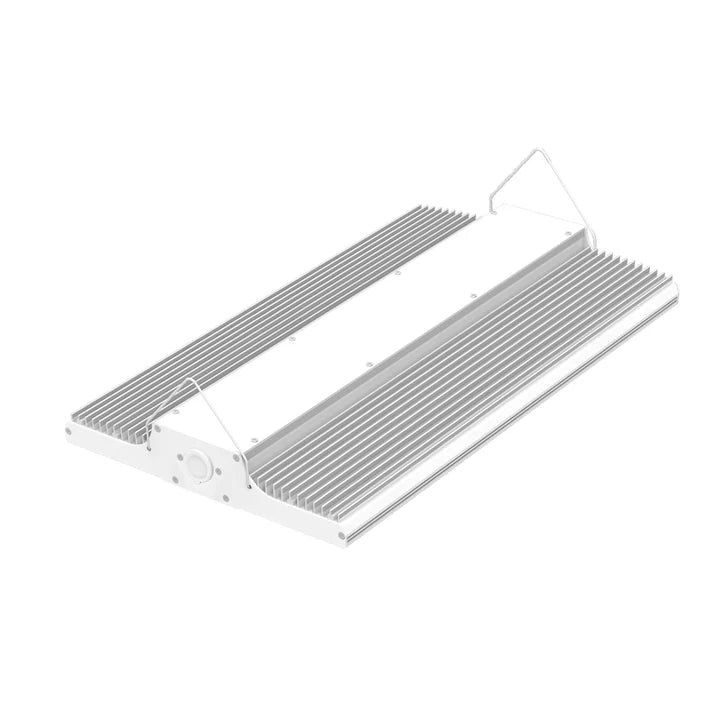

Material: Stretched aluminum shell for enhanced heat dissipation
-
Design: Ultra-thin, front light-emitting body
-
Optional: DC photocell sensor
-
Certifications: UL, cUL, CE, DLC, FCC, ROHS, ETL
-
Lifespan: 50,000 hours
-
Warranty: 5 Years
📐 Specifications Table:
| Item No. | Wattage | LED Source | Lumens | Dimension (mm) |
|---|---|---|---|---|
| RW-LHB-150W | 150W | 240pcs SMD3030 | 22,500lm | 396×260×51 |
| RW-LHB-240W | 240W | 320pcs SMD3030 | 36,000lm | 496×260×51 |
| RW-LHB-300W | 300W | 480pcs SMD2835 | 45,000lm | 576×260×51 |
| RW-LHB-400W | 400W | 588pcs SMD2835 | 60,000lm | 676×260×51 |

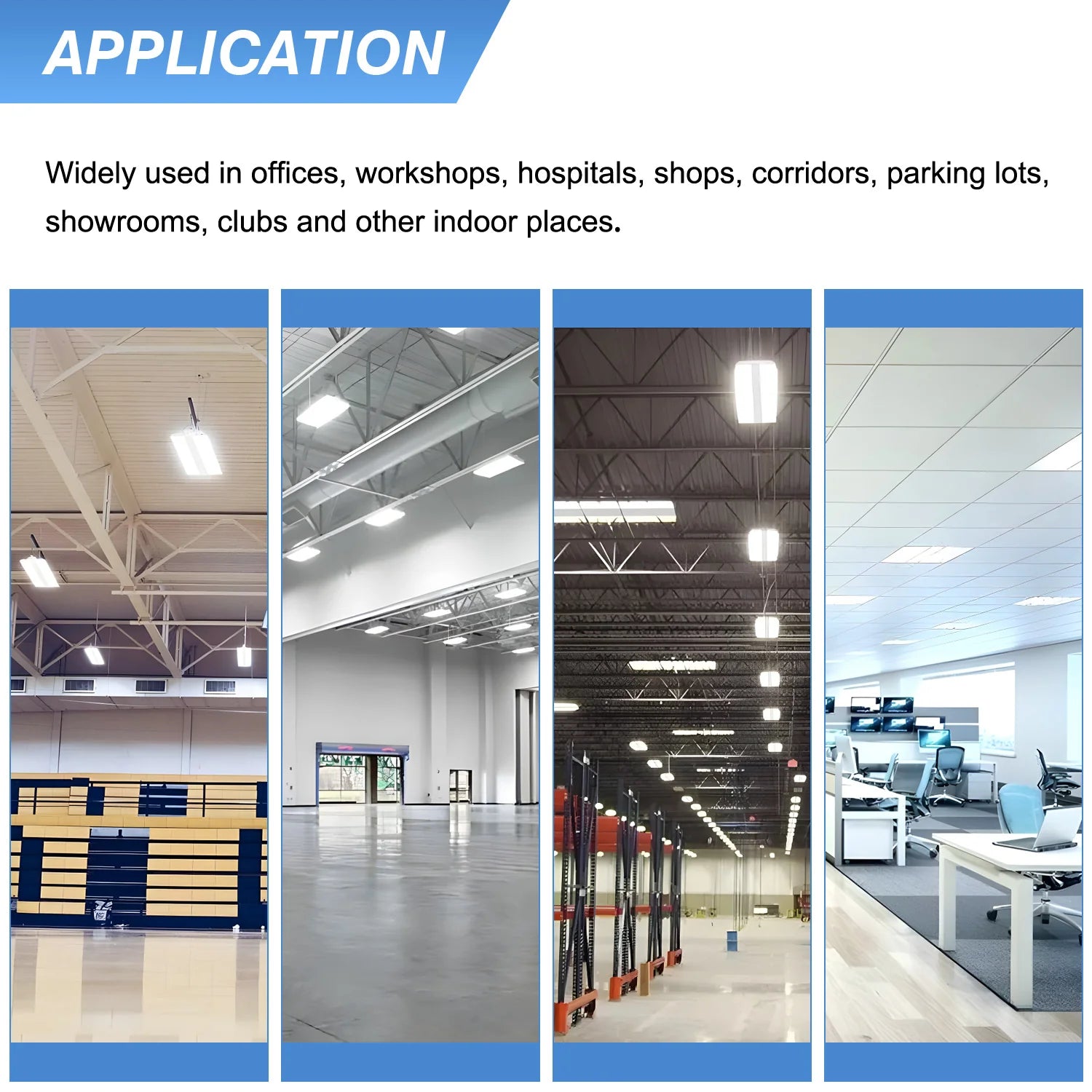

Best For:
-
Warehouses
-
Industrial Facilities
-
Commercial Workshops
-
Gymnasiums
-
Big Box Retail Stores
-
Distribution Centers
-
Exhibition Halls

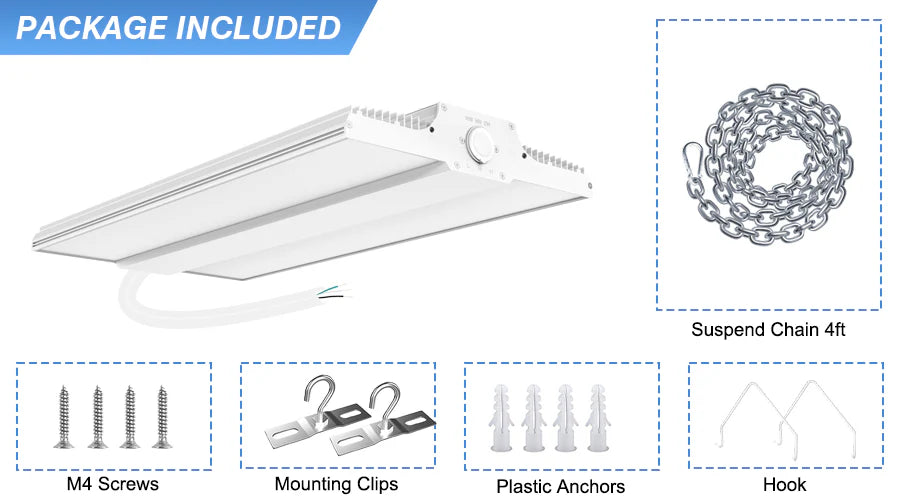

What’s Included:
-
Linear High Bay Light Fixture
-
Mounting Hardware
-
Dimming Driver (0-10V compatible)
-
Optional: DC Photocell Sensor
-
Installation Guide & Warranty Card
💬 Need Assistance?
We’re here to help you pick the right wattage or bulk purchase options. Contact our lighting specialists for assistance!
