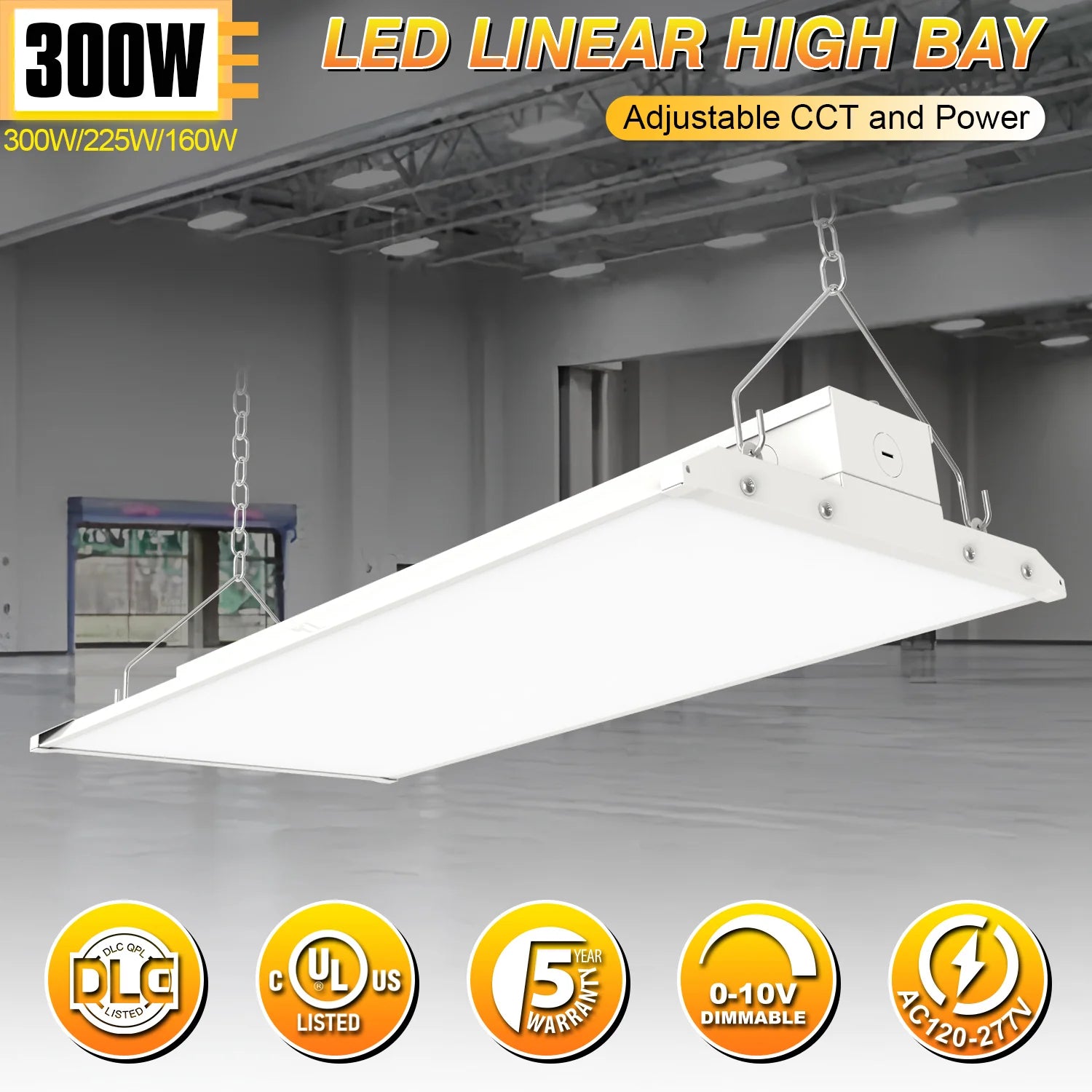

300W – 80W LED Linear High Bay Light | 3-Watt & 3-CCT Tunable

300W – 80W LED Linear High Bay Light | 3-Watt & 3-CCT Tunable | 120-277VAC | 0-10V Dim | DLC/UL Certified

$115.00

Shipping calculated at checkout.

Experience a harmonious blend of premium sound quality and ergonomic design that allows.

Wattage

160/110/80W
220/160/110W
300/225/160W

Choose options

Quantity

Description

Product Description:

Discover superior flexibility and high-performance lighting with the LED Linear High Bay Light – RW-LH07 Series. This fixture is 3-wattage and 3-CCT tunable, giving you ultimate control over brightness and color temperature for various industrial and commercial applications. Built with a rugged galvanized iron plate, high-efficiency SMD2835 chips, and up to 149 lm/W, it’s a powerful, energy-saving solution for demanding environments.

Key Features:

3-Watt & 3-CCT Tunable:
- RW-LH07-160W (2FT): 80W / 110W / 160W – 24,000 Lumens
- RW-LH07-220W (2FT): 110W / 160W / 220W – 33,000 Lumens
- RW-LH07-300W (4FT): 160W / 225W / 300W – 45,000 Lumens
CCT Options: 3500K / 4000K / 5000K (Selectable)
Input Voltage: 120–277VAC
Dimming: 0-10V standard + 12Vdc auxiliary dimming
Luminous Efficacy: Up to 149 lm/W
Light Source: SMD2835 LED chips

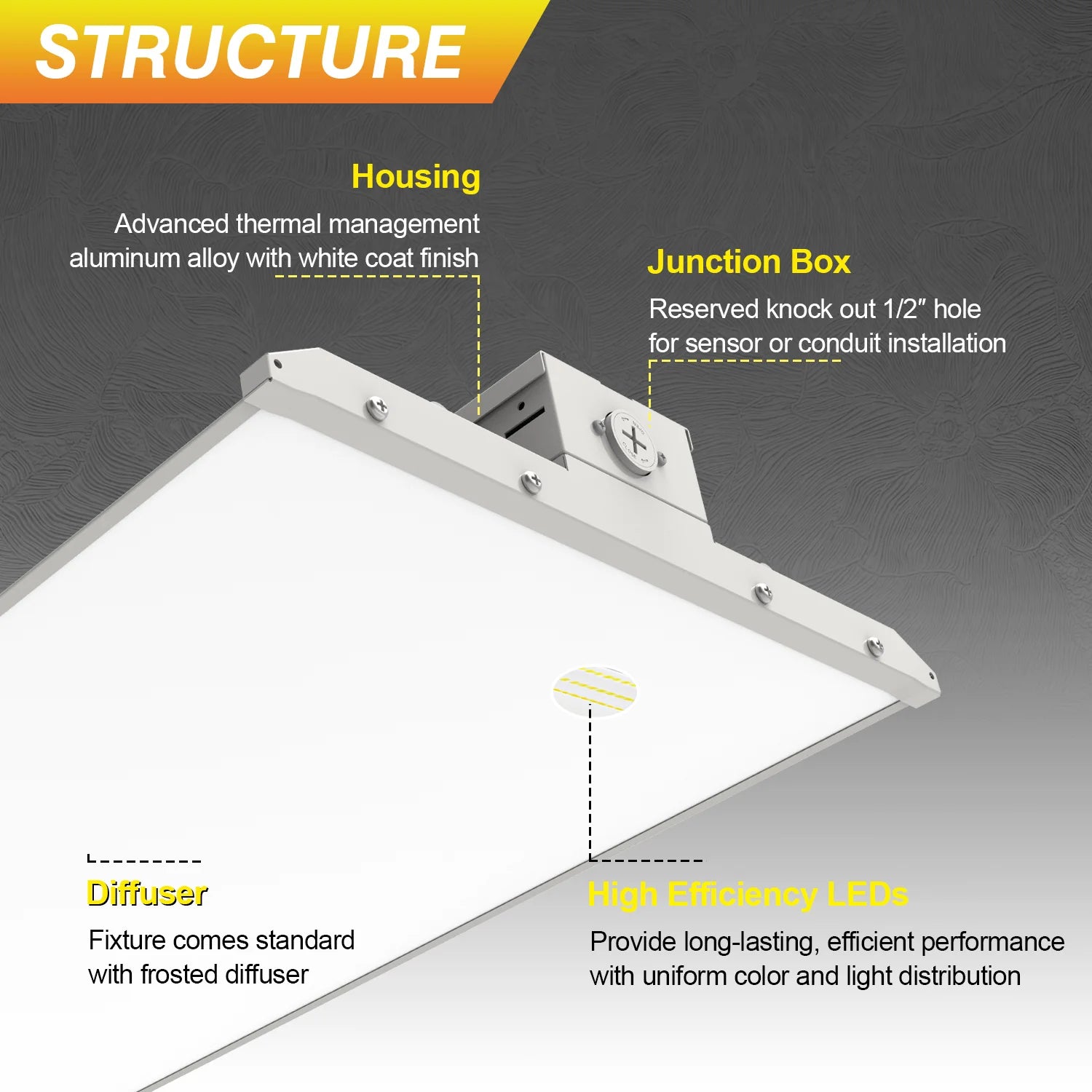

Material: Aluminum + Plastic housing for better heat dissipation

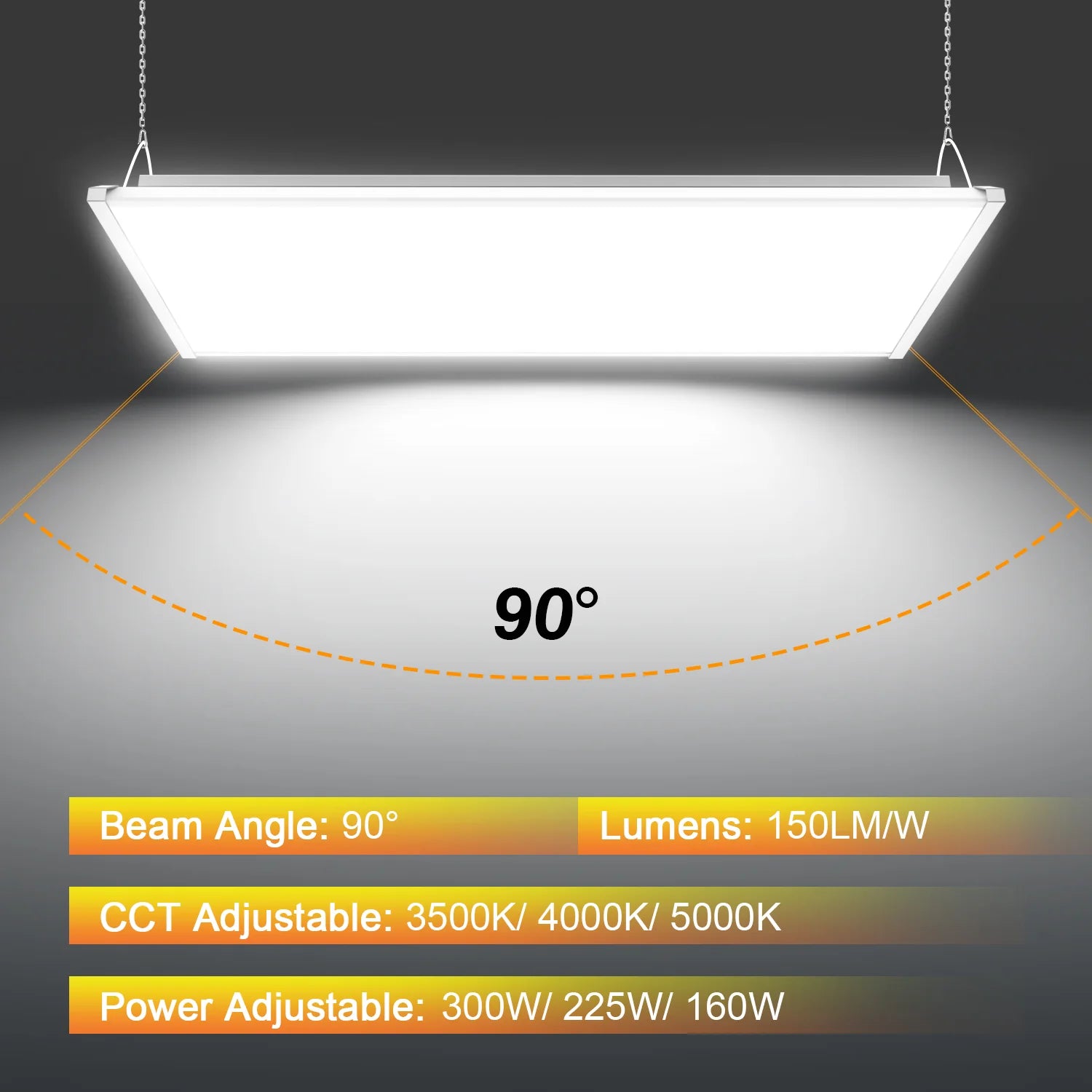

Design: Full-lens optical layout for improved light utilization and uniformity

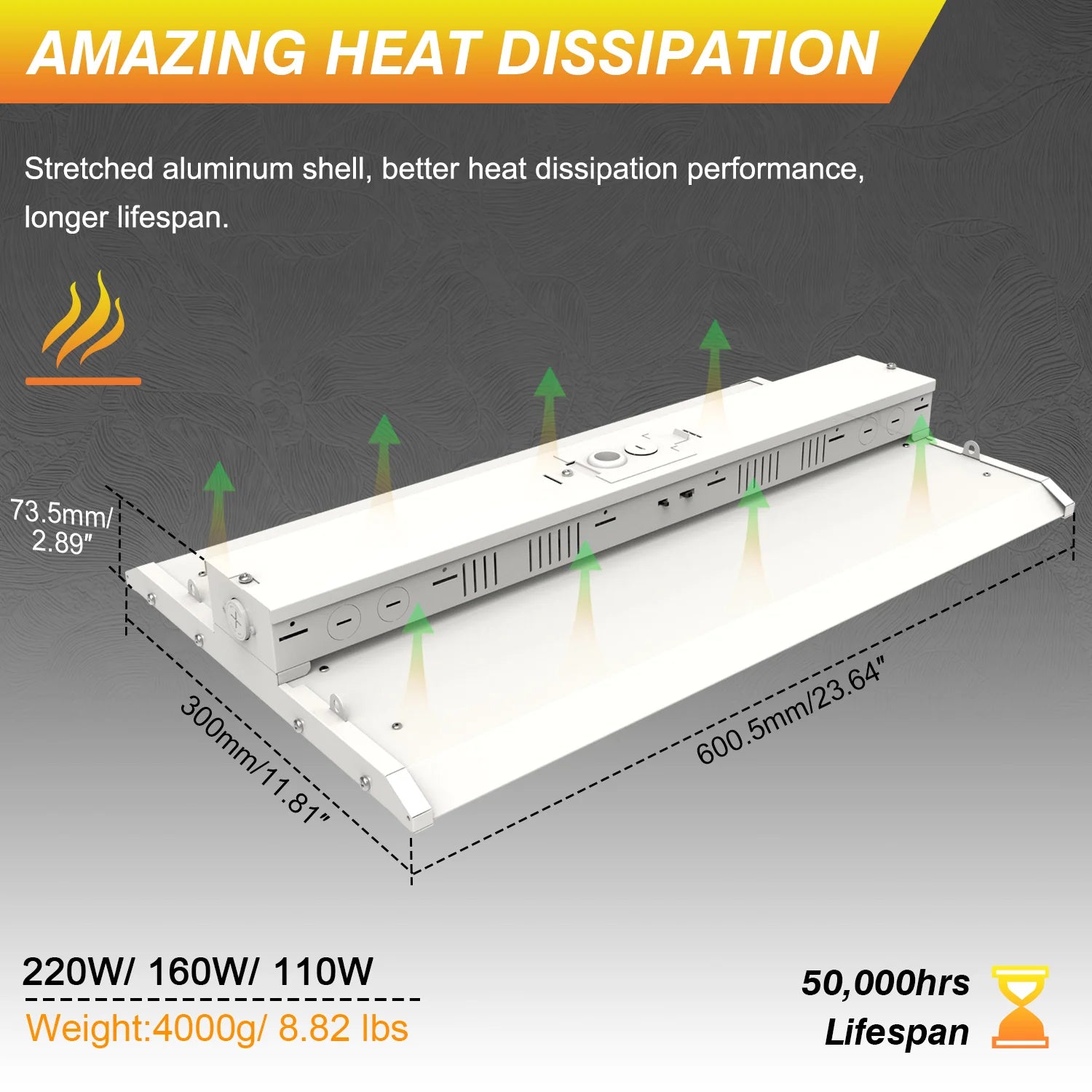

Cooling: Tj < 85°C with excellent thermal control
Lifespan: 50,000+ hours
Warranty: 5 Years

Product Specifications Table:

Model	Wattage Options	CCT Options	Lumens	Size (mm)	Length	Material
RW-LH07-160W	80W / 110W / 160W	3500K / 4000K / 5000K	24,000 lm	600×300×74	2FT	Alu + Plastic
RW-LH07-220W	110W / 160W / 220W	3500K / 4000K / 5000K	33,000 lm	600×360×74	2FT	Alu + Plastic
RW-LH07-300W	160W / 225W / 300W	3500K / 4000K / 5000K	45,000 lm	1160×360×74	4FT	Alu + Plastic
