Product Description:

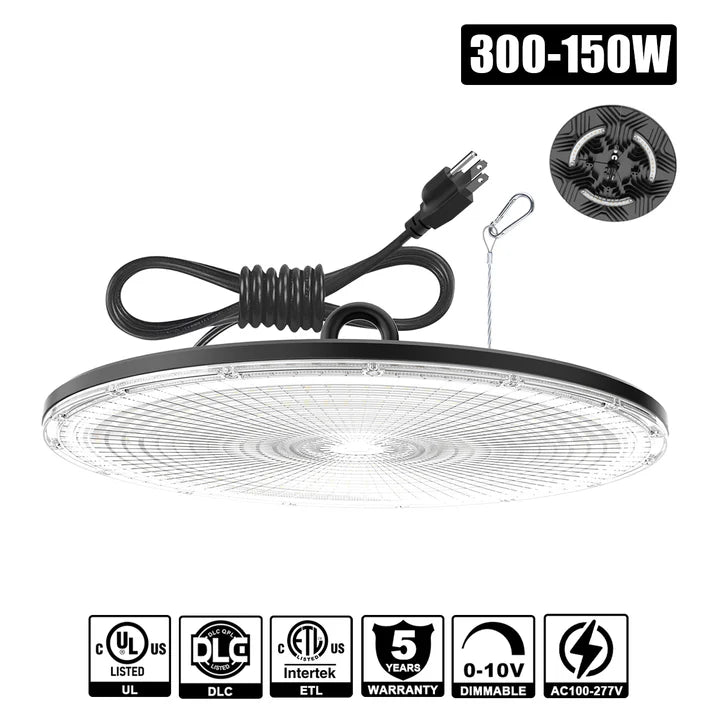

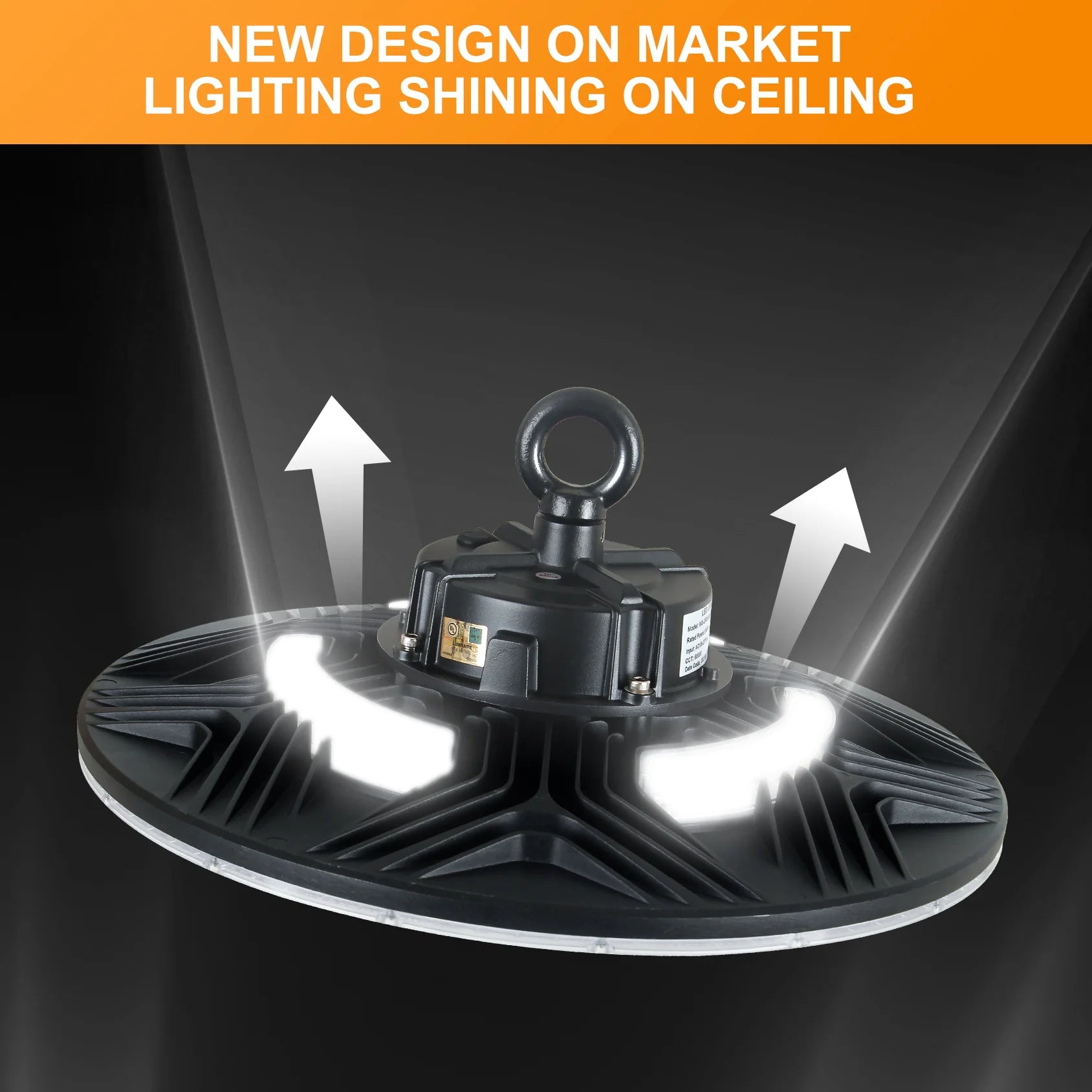

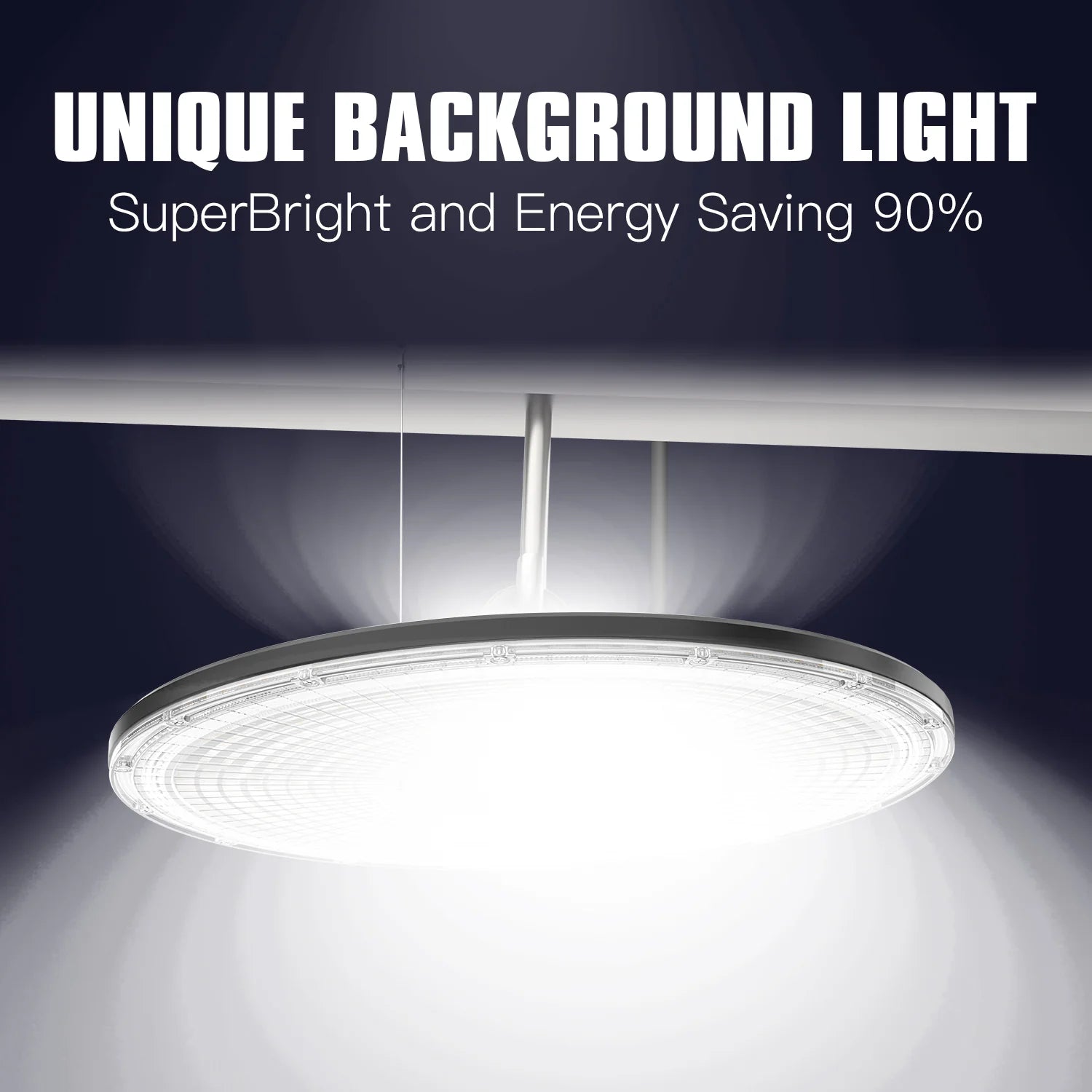

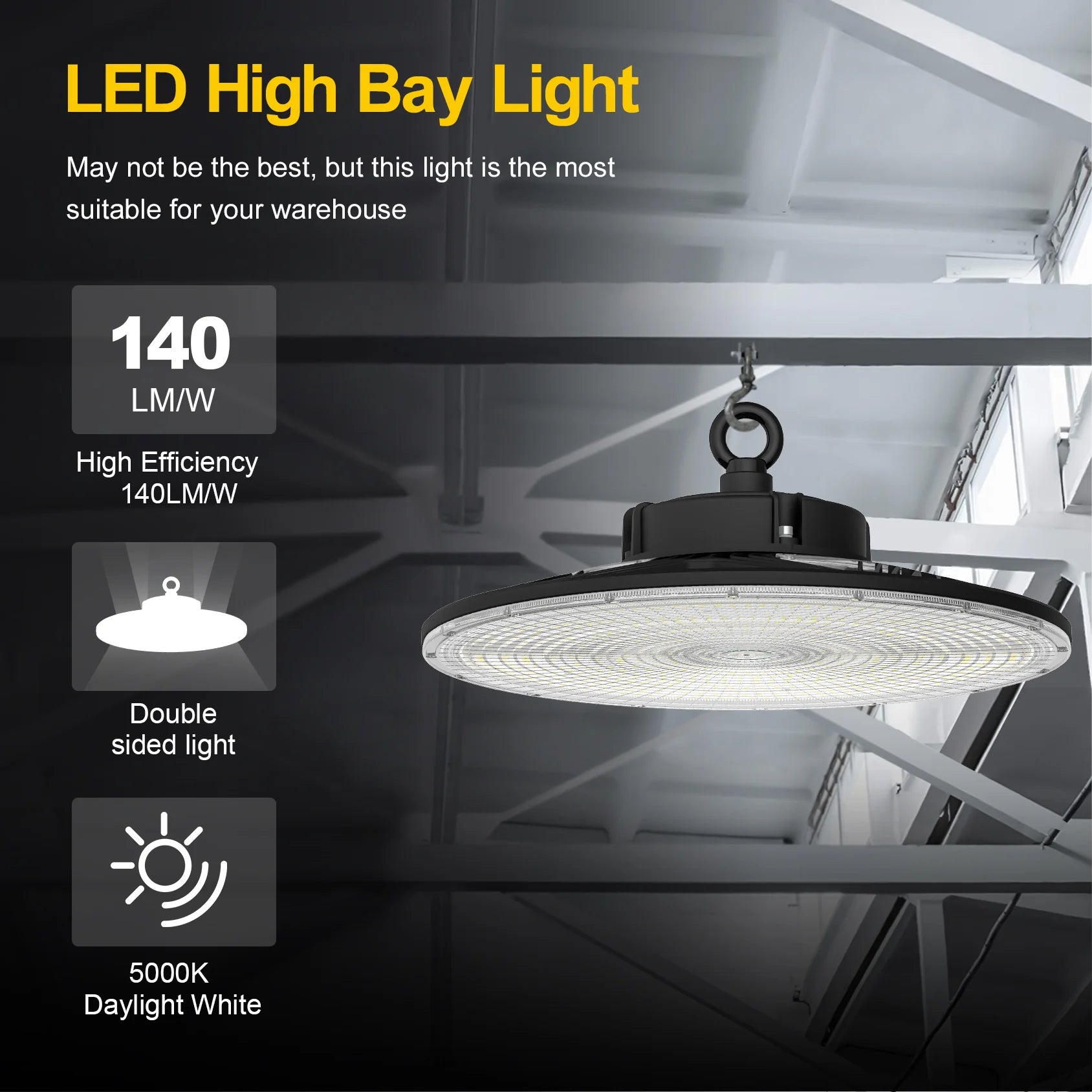

Introducing the RW-UFOPL Series UFO High Bay Light PLUS — a high-performance LED fixture designed with energy savings, versatility, and aesthetics in mind. Built with a super-thin aluminum heatsink, SMD2835 chips, and a unique background lighting design, this UFO-style high bay is perfect for retail, commercial, and industrial environments.
This model supports 120VAC linear driver input with both internal and external driver options, offering flexible installation and enhanced dimming control via remote 0-10V dimming.
🔧 Key Features:
-
Tunable Wattage Options:
-
RW-UFOPL-150W: 150W – 22,500 Lumens
-
RW-UFOPL-240W: 240W – 36,000 Lumens
-
RW-UFOPL-300W: 300W – 45,000 Lumens
-
-
Color Temperature: 5000K (Bright daylight white)
-
Input Voltage: 120VAC ±10% (Linear Drive)
-

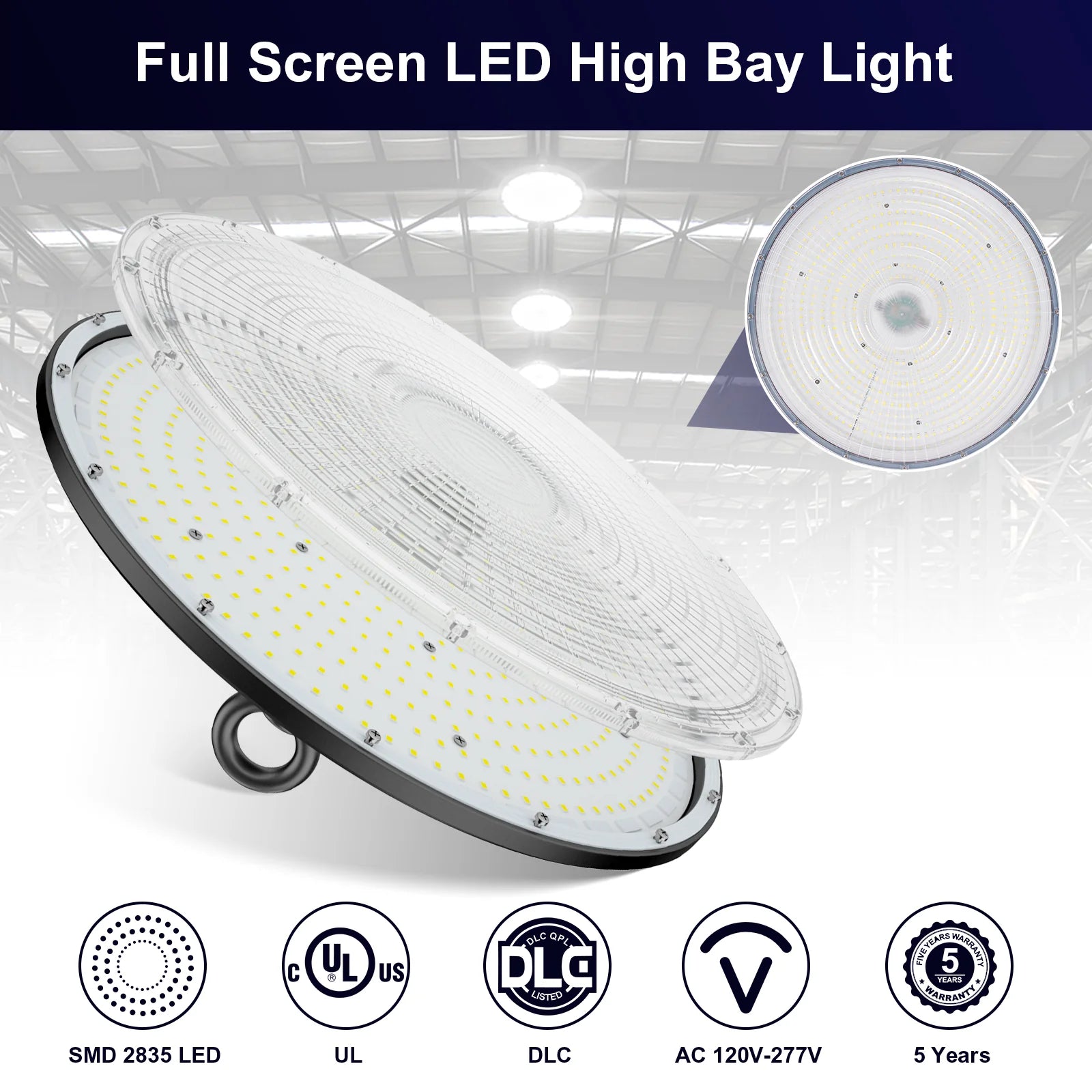

LED Chips: SMD2835, High Efficacy 140 lm/W
-
Beam Angle: 120° wide beam for even light distribution
-

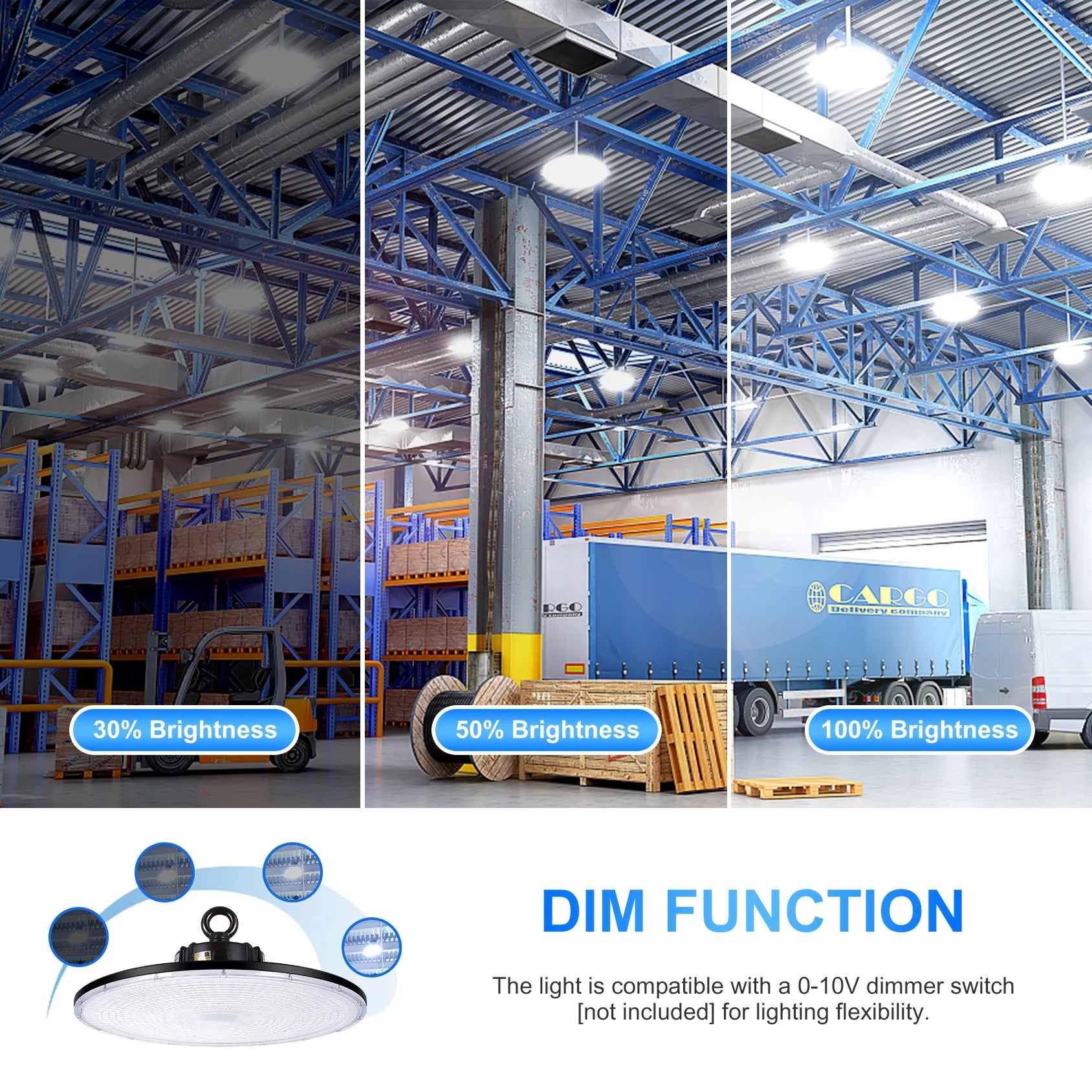

Dimming Control: 0~10V dimmable with remote control support
-
Surge Protection: 6KV Surge Protection (High Voltage Tested)
-
Power Factor: >0.9 | Low THD Driver
-

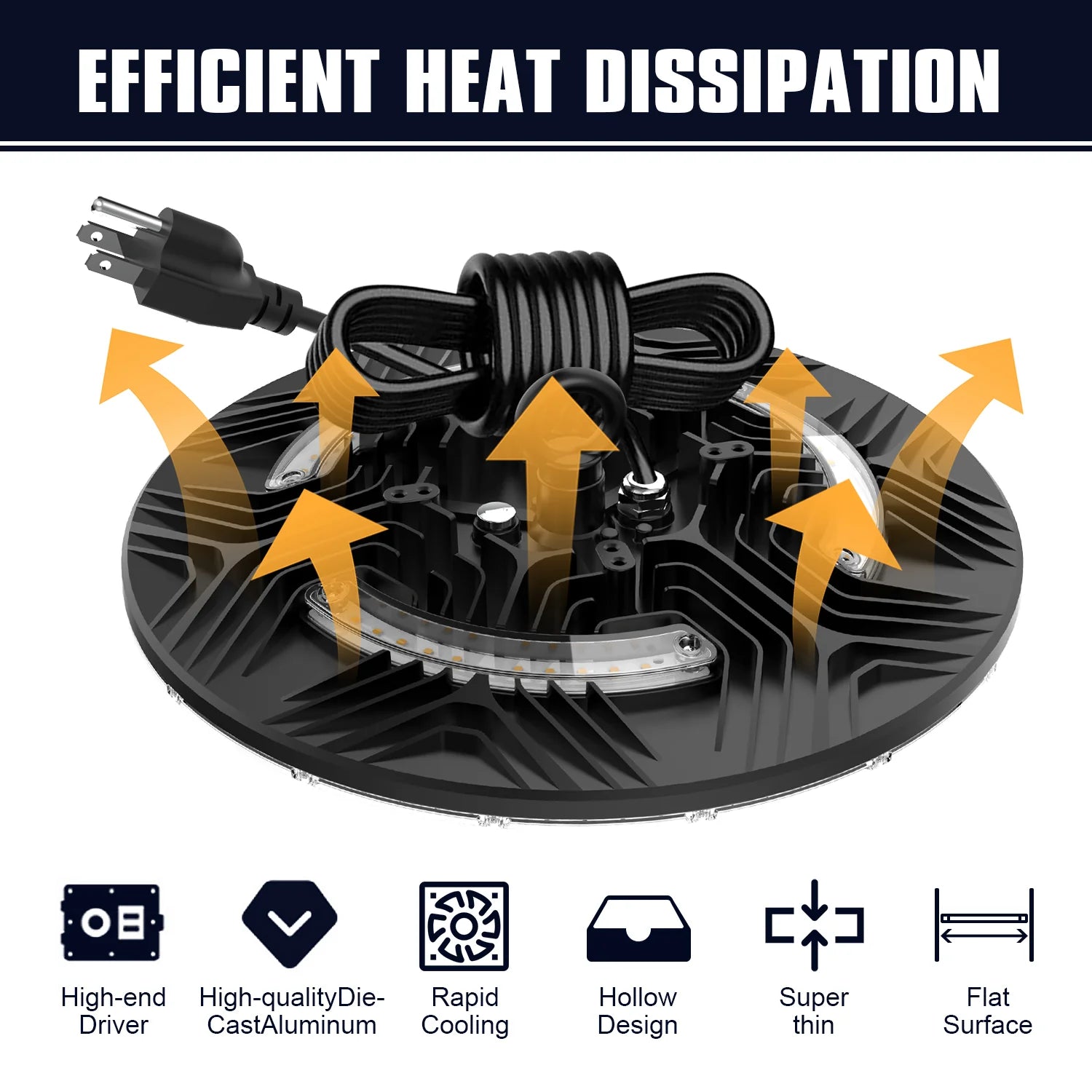

Thermal Design: Super-thin aluminum heatsink with excellent heat dissipation
-
Driver Type: External or Internal driver options
-
Warranty: 5 Years Manufacturer Warranty
-
Energy Savings: Save up to 50% in power consumption
Ideal For:
-
Retail Stores
-
Commercial Warehouses
-
Gymnasiums
-
Supermarkets
-
Manufacturing Units
-
Exhibition Halls
-
Indoor & Covered Outdoor Facilities
📋 Product Specifications Table:
Model | Input Voltage | LED Chips (SMD2835) | Luminous Flux |
---|---|---|---|
RW-UFOPL-150W | 120VAC ±10% | 507 pcs | 22,500 lm |
RW-UFOPL-240W | 120VAC ±10% | 780 pcs | 36,000 lm |
RW-UFOPL-300W | 120VAC ±10% | ~900 pcs (Est.) | 45,000 lm (Est.) |
Note: 300W lumen value estimated based on chip density and efficacy
What’s Included:
-
UFO High Bay Fixture
-
Remote-compatible Driver
-
Mounting Hardware
-
Safety Instructions & Warranty Card
