Description

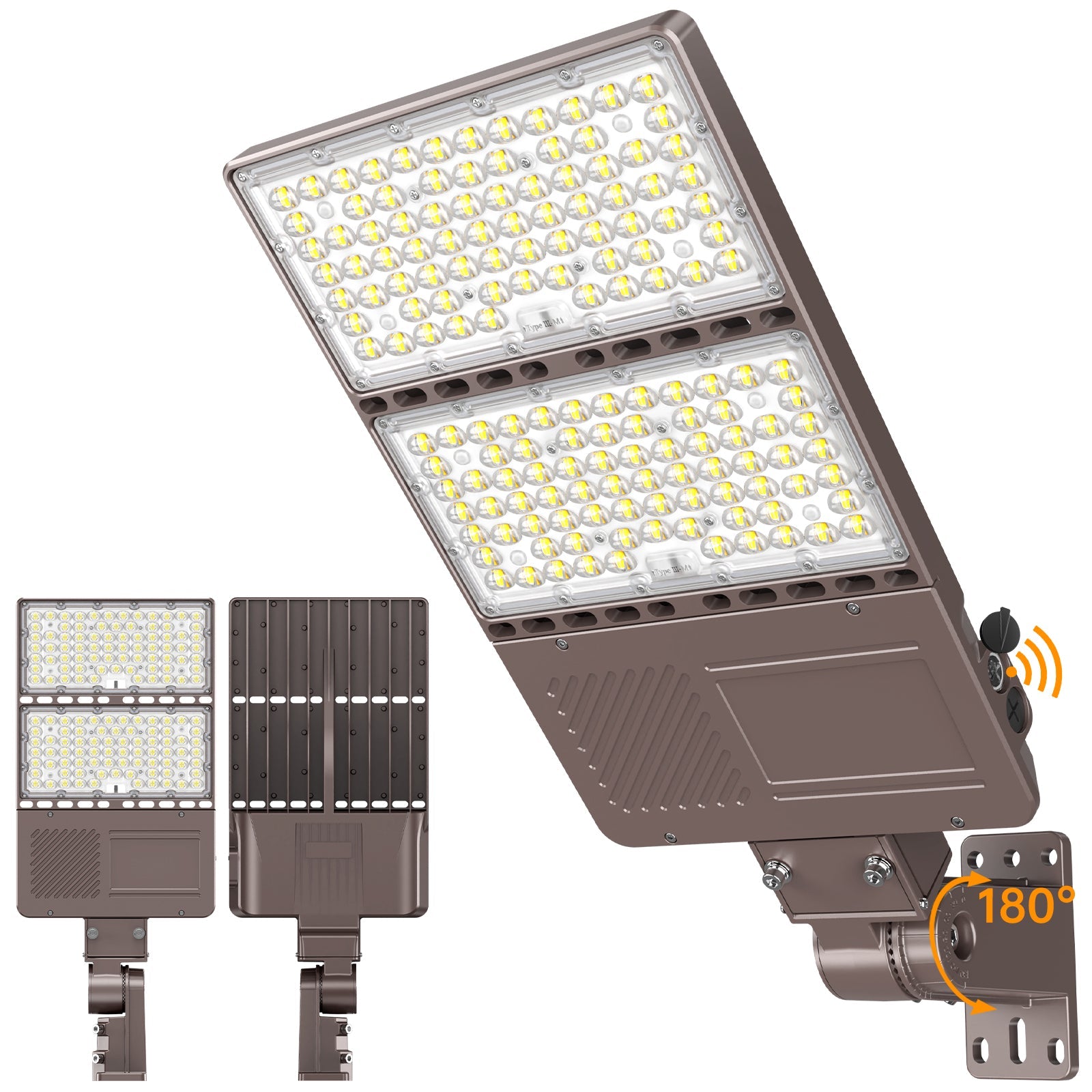

Enhance your commercial or industrial outdoor lighting with our LED Shoebox Area Light, available in 150W and 320W models with Tunable Wattage and CCT. Designed for parking lots, roadways, and outdoor perimeters, this light delivers high performance with a built-in photocell sensor, 0–10V dimmable driver, and die-cast aluminum housing for ultimate durability.
Tunable color temperature options (4500K / 5000K / 5700K) allow you to customize your lighting output on-site for enhanced visual comfort. Mounting brackets are available in Slip Fitter, Trunnion, or 3-in-1 Universal formats for flexible installation.
Key Features:
-

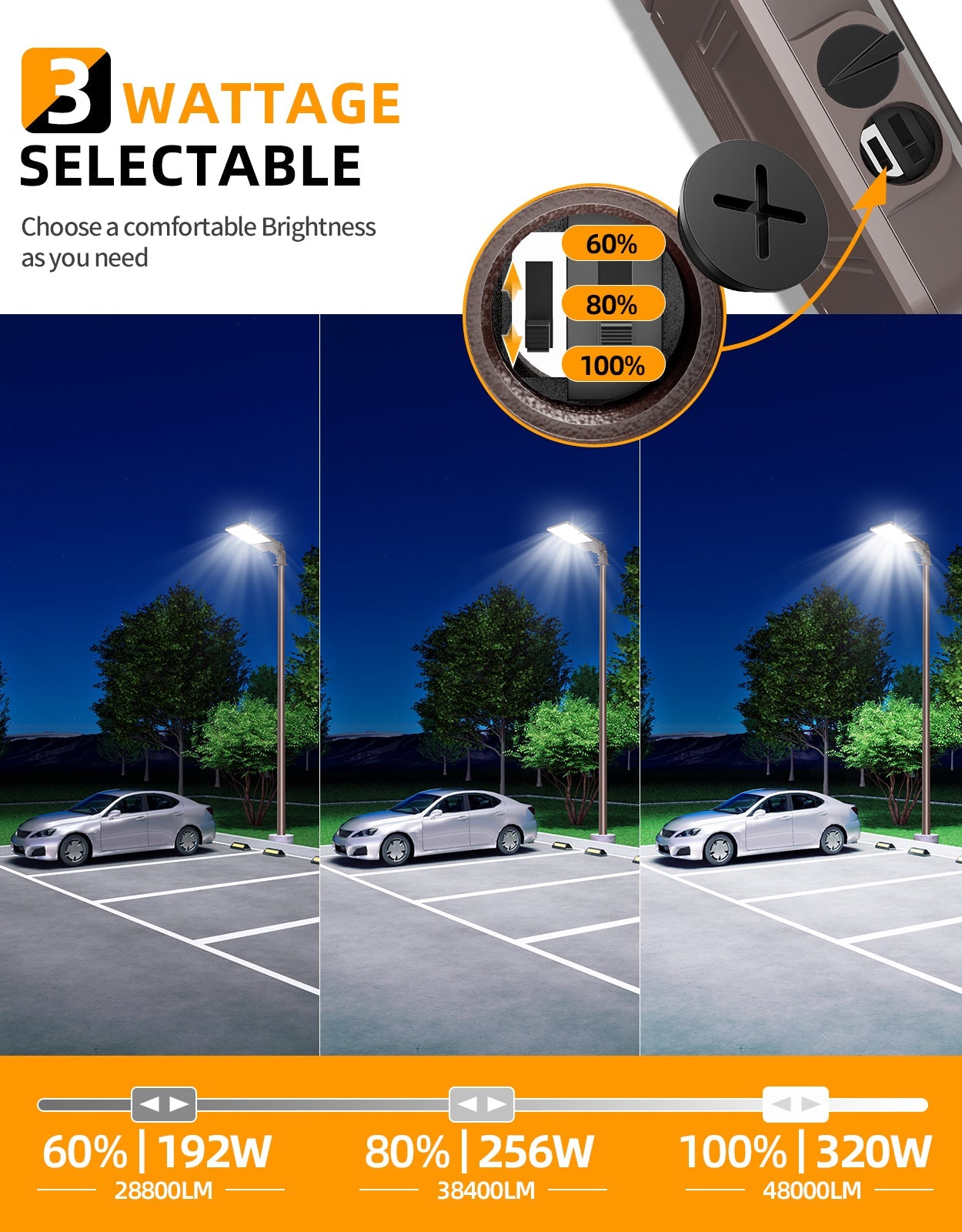

Wattage Tunable Options:
-
150W model: 90W / 120W / 150W
-
320W model: 192W / 256W / 320W
-
-
Color Temperature (CCT):
-
4500K / 5000K / 5700K (Selectable)
-
-

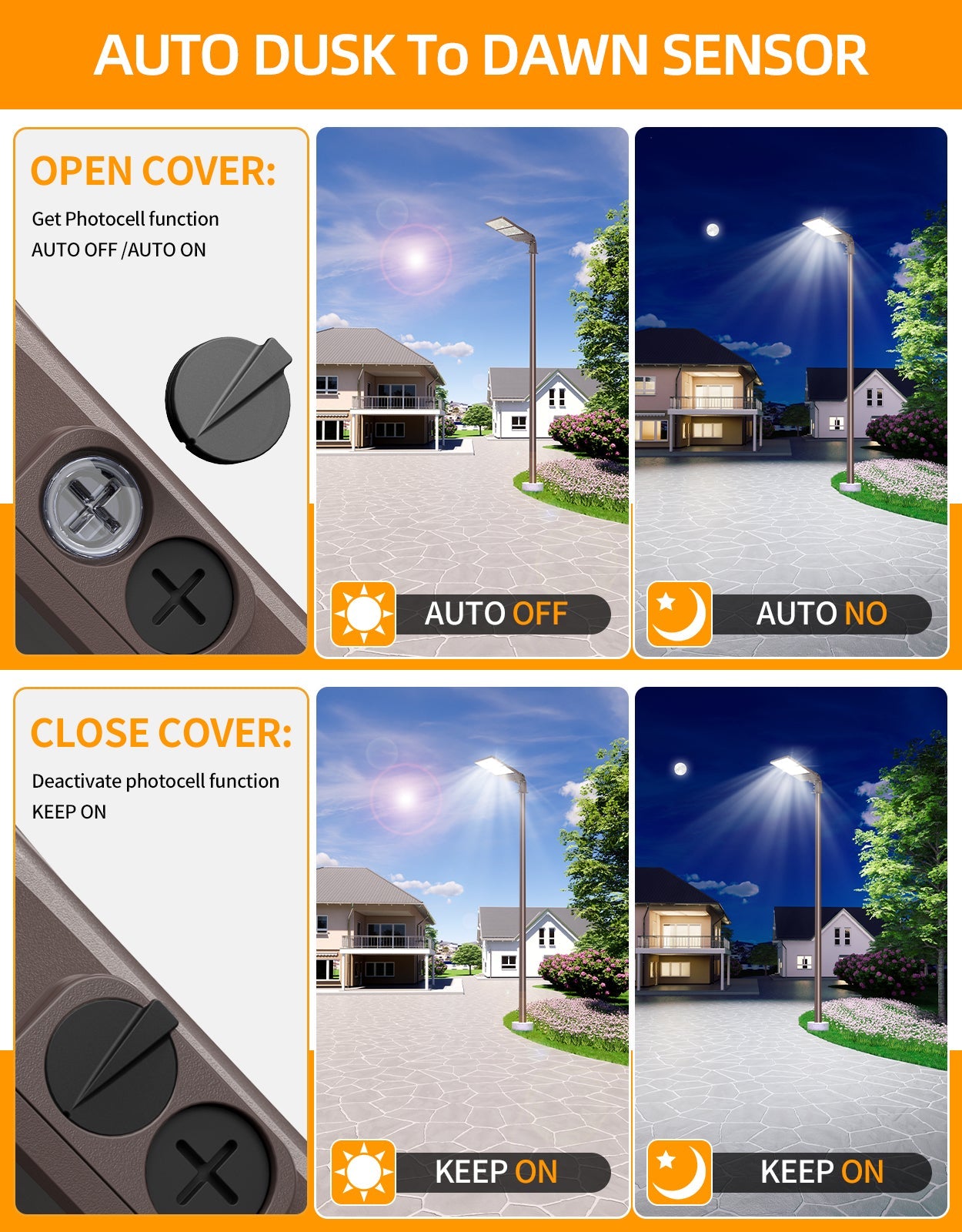

Photocell Sensor:
-
Built-in (Dusk-to-Dawn Operation)
-
-
Input Voltage: 100V – 277V AC
-
Driver: UL Certified, 0–10V Dimmable
-
Light Output Efficiency: 140 lumens per watt
-
LED Type: SMD3030 (High Lumen Output)
-

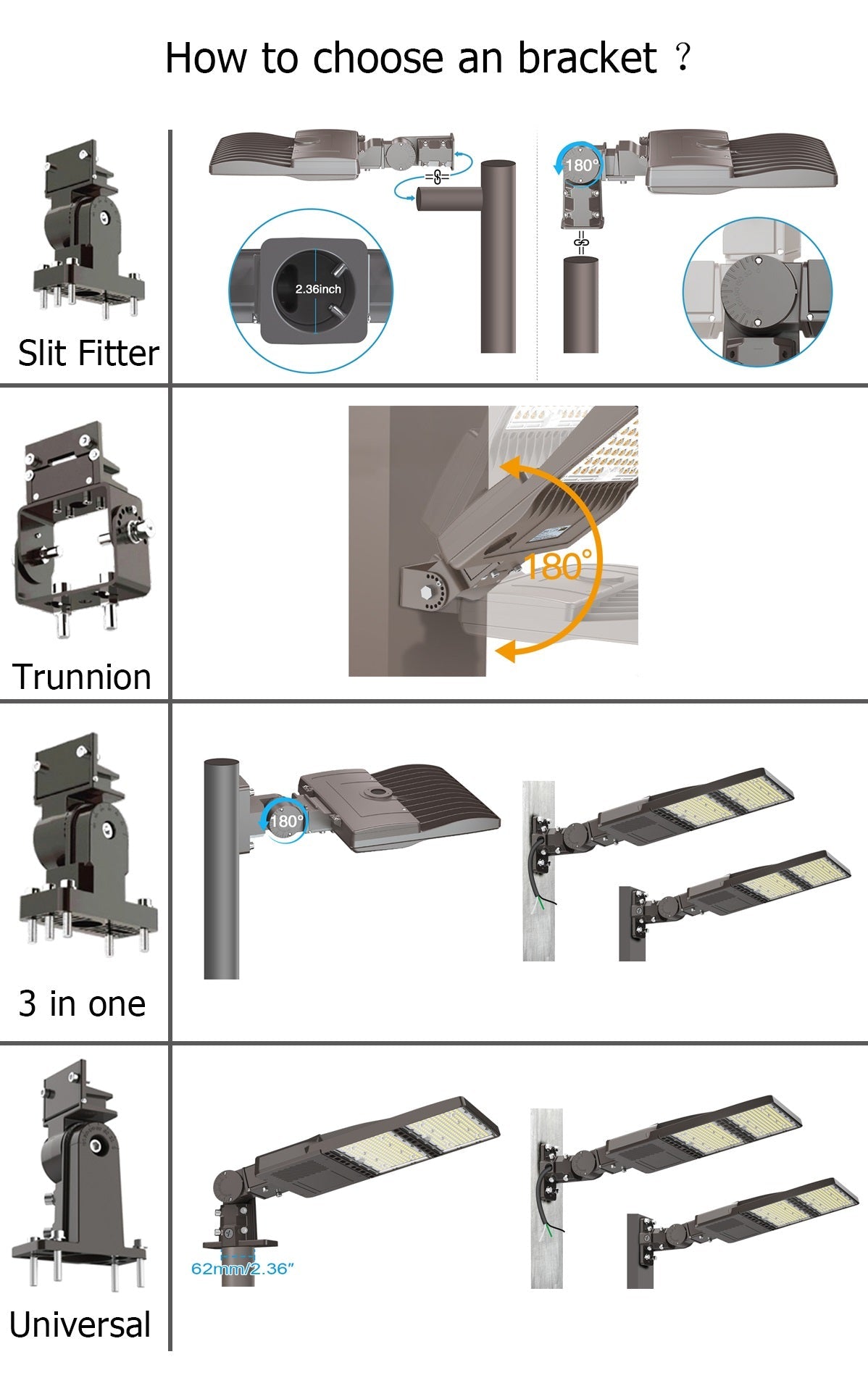

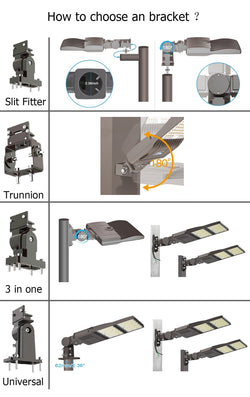

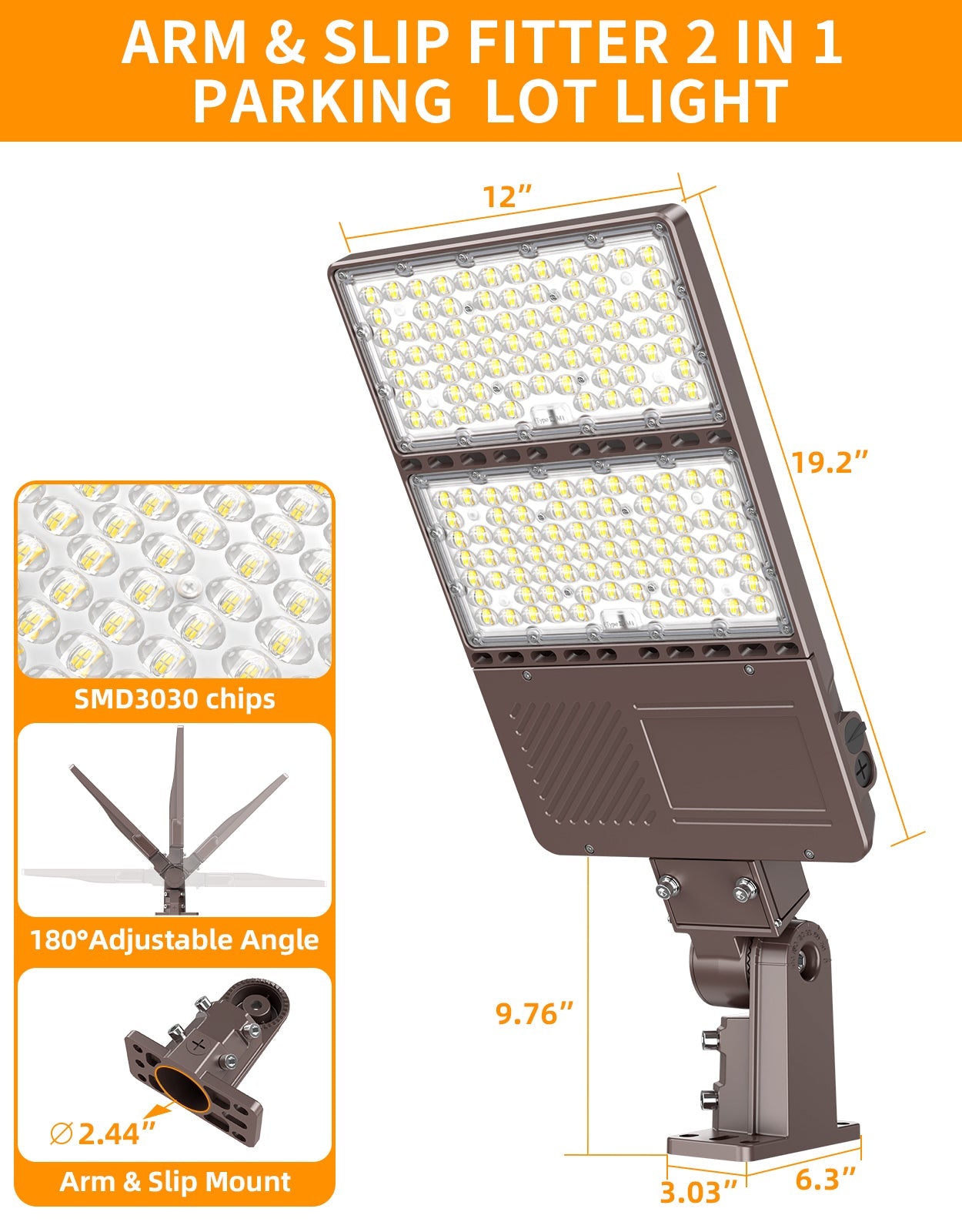

Mounting Options:
-
Slip Fitter
-
Trunnion
-
All-in-One / 3-in-1 Universal
-
-
Ingress Protection: IP65 (Waterproof, Dustproof)
-

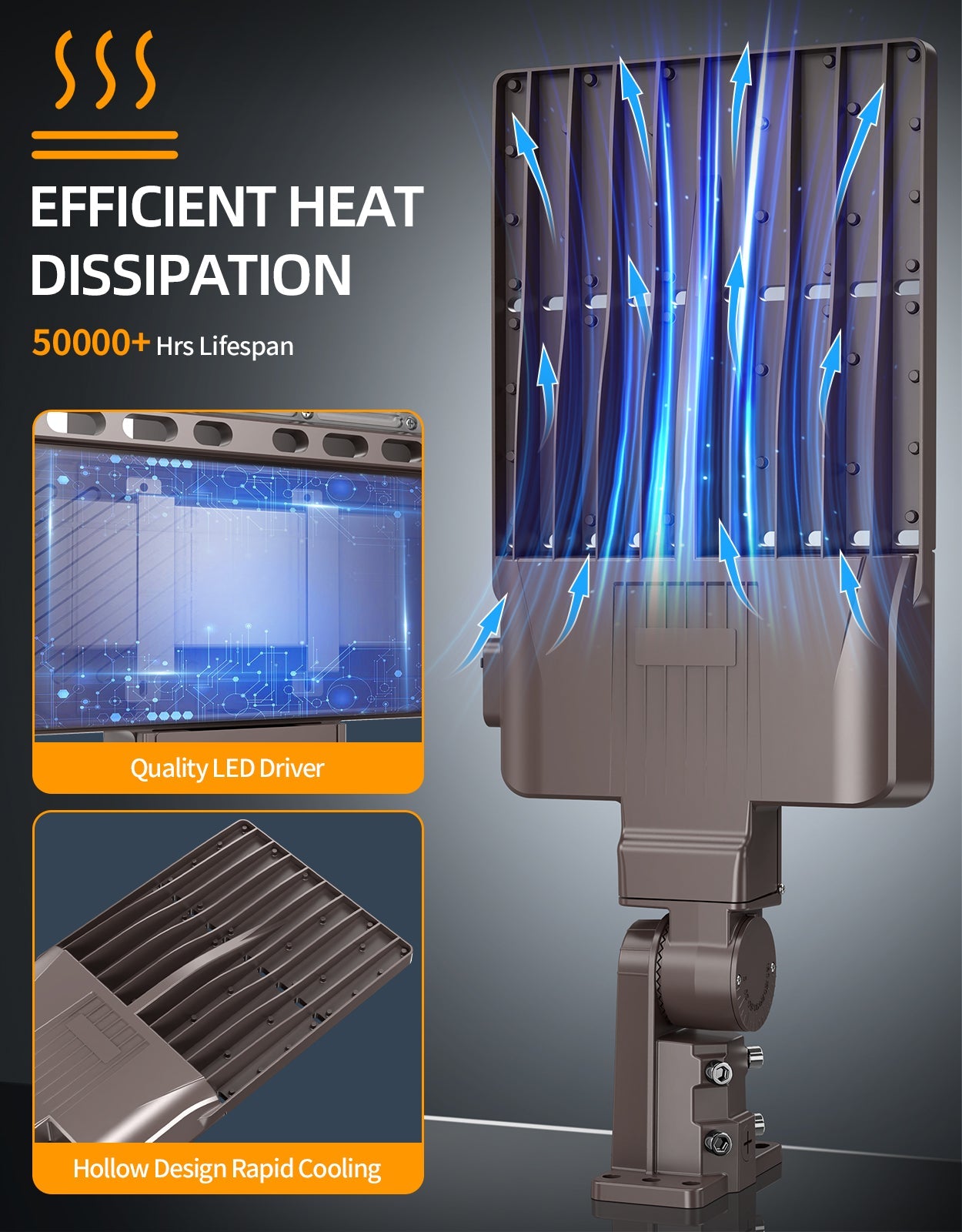

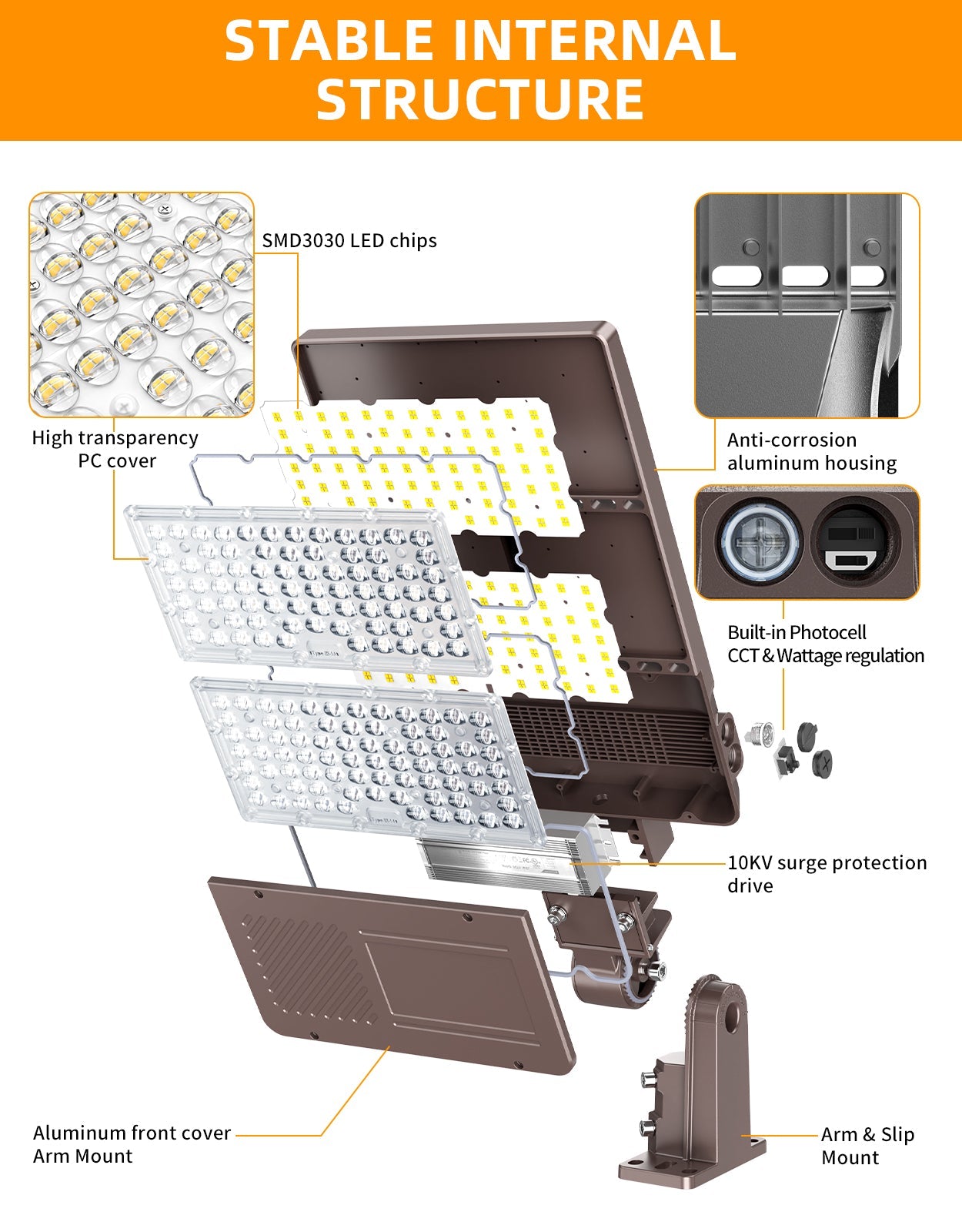

Housing: Die-cast aluminum, anti-corrosion
-
Certifications: UL, cUL, DLC, FCC, CE, ETL, ROHS
-
Warranty: 5-Year Limited Warranty
Specifications Table:
Model ID | Wattage (Tunable) | LEDs | Lumens Output | Dimensions |
---|---|---|---|---|
RW-PL-150W | 90W / 120W / 150W | 400pcs SMD3030 | 21,000 lm | 558×305 mm |
RW-PL-320W | 192W / 256W / 320W | 608pcs SMD3030 | 44,800 lm | 730×305 mm |
Applications:
-
Parking Lots
-
Street Lighting
-
Building Perimeters
-
Commercial Walkways
-
Airports & Stadiums
-
Retail Outdoor Areas
What’s Included:
-
1× LED Shoebox Area Light
-
Mounting Bracket (Selected Type)
-
Built-in Photocell
-
Installation Manual
-
5-Year Warranty Card
