The LED Full Cut-Off Wall Pack offers unmatched versatility with tunable wattage and selectable color temperature, allowing you to customize light output and ambiance on-site. Perfect for commercial, industrial, and security lighting applications.

This wall pack features 150LM/W high-efficiency SMD3030 chips, delivering bright, uniform illumination while maximizing energy savings. The tempered UV-coated flat lens ensures glare control and consistent light distribution.

With 0–10V dimming, integrated photocell, and multiple lumen settings (100%, 80%, 60%, 40%), this fixture gives you total control over your lighting needs. Rugged and weather-resistant, it’s built to perform in extreme outdoor environments.

Key Features:

• Wattage Options:

  • RW-FWP-70W: 28W / 42W / 56W / 70W – 10,500LM – 235×361×223mm

  • RW-FWP-125W: 50W / 75W / 100W / 125W – 18,750LM – 235×361×223mm

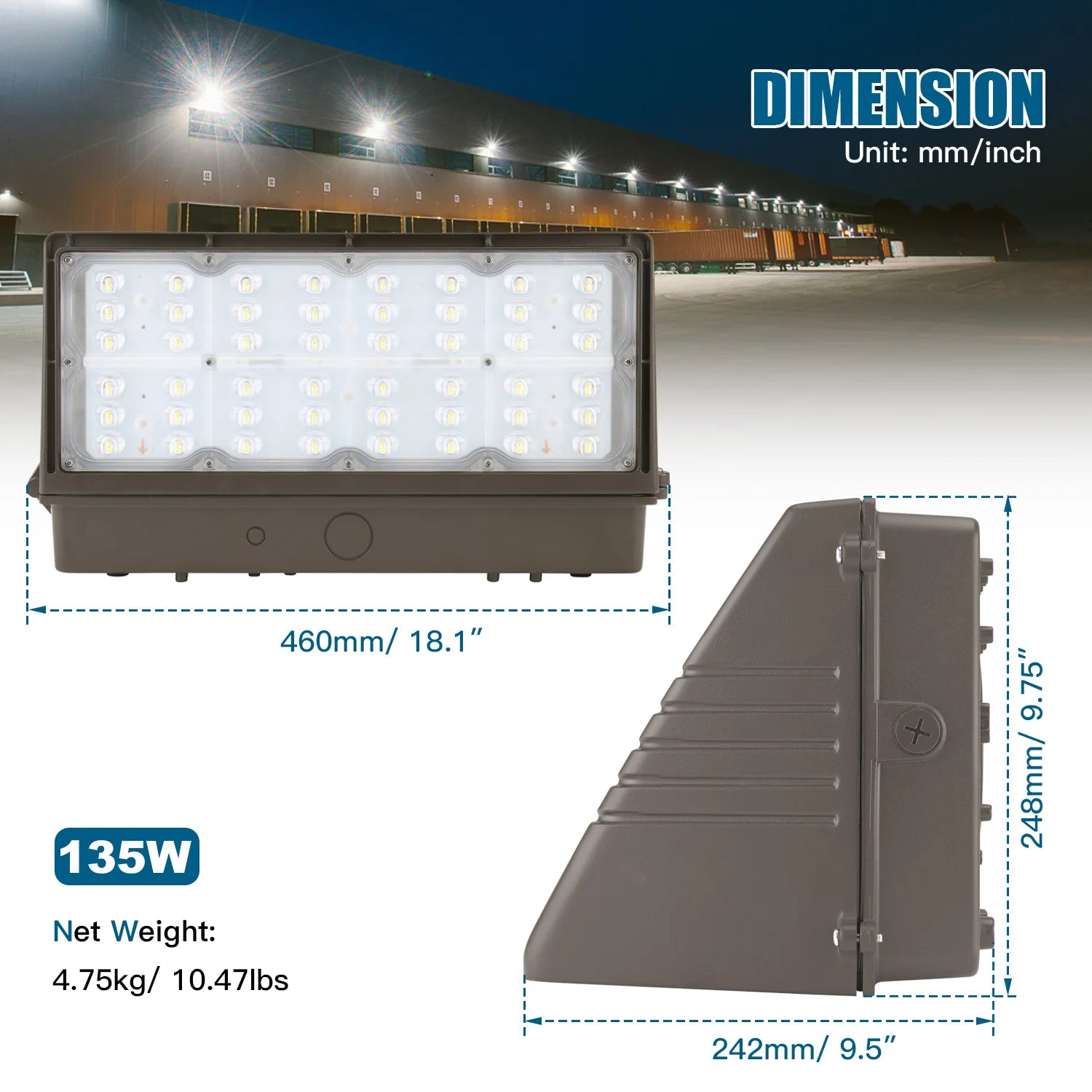

  • RW-FWP-135W: 54W / 81W / 108W / 135W – 20,250LM – 248×460×242mm

• CCT Selectable: 3000K / 4000K / 5000K

• Efficiency: 150LM/W – SMD3030 LED Chips

• Power Factor: >0.9

• THD: <20%

• Surge Protection: 6KV

• Dimming: 0–10V standard

• Lens: Tempered UV-coated flat lens for uniformity & glare control

• Operating Temp: -40°C to +45°C (-40°F to +113°F)

• Voltage: 120–277VAC

• Certifications: UL, cUL, CE, DLC, FCC, RoHS

• Warranty: 5 Years

Benefits:

• Energy savings up to 80% vs. metal halide fixtures

• Flexible on-site wattage & color temperature adjustments

• Integrated photocell for automatic dusk-to-dawn operation

• Commercial-grade durability for outdoor applications

• High lumen output with uniform light distribution

Applications:

• Building perimeter lighting

• Security and safety lighting

• Commercial exteriors

• Pathway and area lighting

• Industrial facilities
